REAR WIPER ARM AND BLADE REMOVAL/INSTALLATION

id091900801200

Rear Wiper Arm

1.  Pull the cap in the direction of the arrows (1) shown in the figure and remove it in the direction of the arrow (2) with tabs A, B released.

ac5uuw00007154

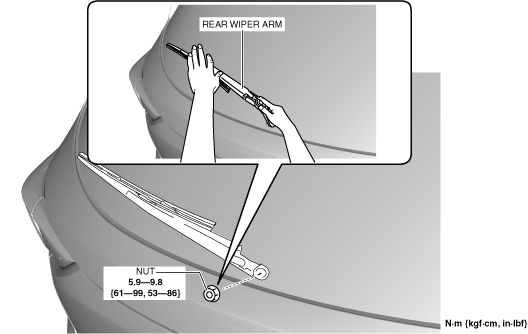

2.  Remove the nut with the rear wiper arm and blade pressed.

ac5uuw00007155

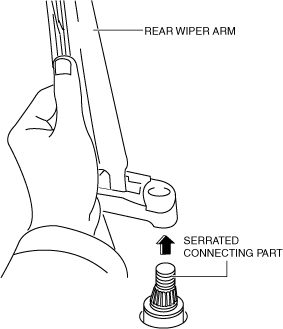

3.  Raise the rear wiper arm and detach it from the serrated connecting part in the direction of the arrow shown in the figure. (See Rear Wiper Arm Installation Note.)

ac5wzw00010495

4.  Install in the reverse order of removal.

5.  Adjust the rear wiper arm and blade. (See REAR WIPER ARM AND BLADE ADJUSTMENT.)

Rear Wiper Arm Installation Note

1.  Clean the serrated connecting part with a wire brush before installing the rear wiper arm.

ac5uuw00006838

Rear Wiper Blade

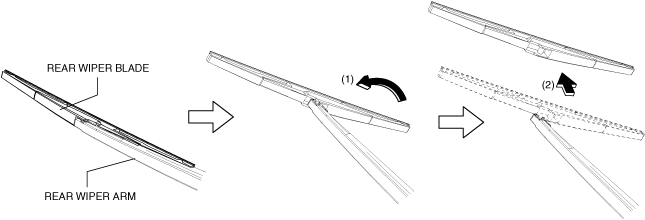

1.  Move the rear wiper blade in the direction of arrow (1) and remove it from the rear wiper arm in the direction of arrow (2).

ac5uuw00007156

2.  Remove the rear wiper blade.

3.  Install in the reverse order of removal.
