HEADLIGHT CLEANER HOSE REMOVAL/INSTALLATION

id091900803100

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the front bumper. (See FRONT BUMPER REMOVAL/INSTALLATION.)

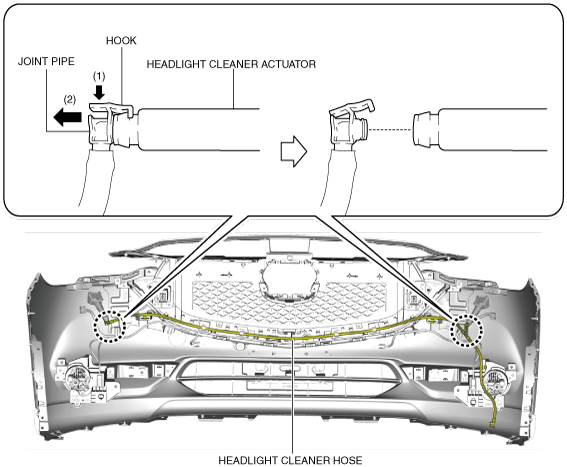

3.  While pressing the hook of the joint pipe in the direction of arrow (1) shown in the figure, pull the joint pipe in the direction of arrow (2) to disconnect the joint pipe from the headlight cleaner actuator.

ac5wzw00009741

4.  Pull out the headlight cleaner hose from the hooks.

ac5wzw00009742

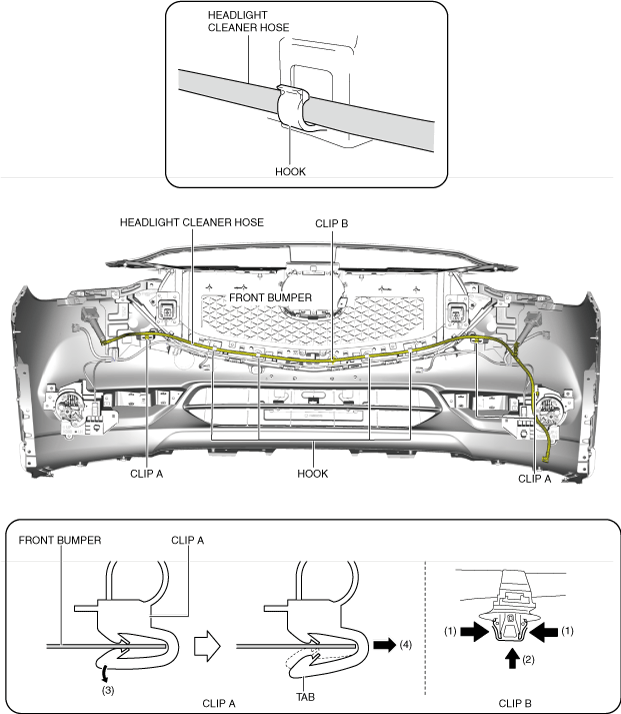

5.  Pull the clip B in the direction of the arrow (2) shown in the figure while pressing the tabs of clip B in the direction of the arrows (1) shown in the figure, and detach the tabs of the clip and front bumper.

6.  Widen the tab of the clip A in the direction of arrows (3) shown in the figure, pull the clip in the direction of arrow (4) to remove the clip from the front bumper.

7.  Remove the headlight cleaner hose.

8.  Install in the reverse order of removal.
