AUDIO AMPLIFIER REMOVAL/INSTALLATION

id092000801100

1.  Slide the front seat (RH) rearward.

2.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

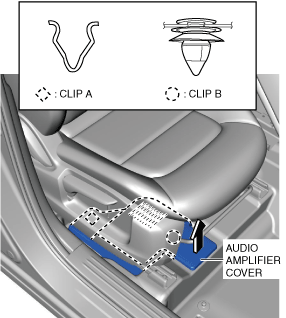

3.  Move the audio amplifier cover in the direction of the arrow shown in the figure, and remove it while detaching clips A and B.

ac5wzw00010500

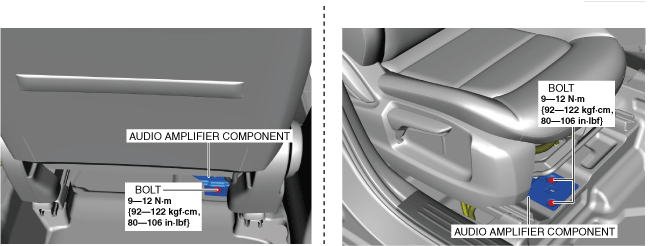

4.  Remove the bolts.

ac5uuw00006604

5.  Disconnect the connectors.

ac5uuw00006605

6.  Remove the audio amplifier component.

7.  Remove the nuts.

ac5uuw00006606

8.  Remove the audio amplifier.

9.  Install in the reverse order of removal.
