STEERING SWITCH [WITHOUT CENTER DISPLAY]

id0920z9010500


Purpose/Function

•  Operation of the entertainment system and changing of the trip computer system display are possible without a change in driving posture.

Structure/Construction

•  The steering switch is located on the spoke of the steering wheel.
•  The resistance is built into each switch.

Without Bluetooth® unit

•  The steering switch consists of the following buttons and switches.
―  Volume adjustment switch (+) and (-)
―  Cue/automatic band selector (up) and (down)
―  Mute button
―  INFO button
―  Talk button

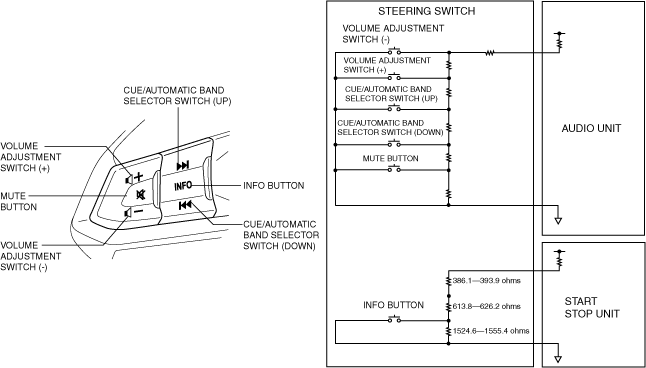

am2zzn00004626


With Bluetooth® unit

•  The steering switch consists of the following buttons and switches.
―  Volume adjustment switch (+) and (-)
―  Cue/automatic band selector (up) and (down)
―  INFO button
―  Talk button
―  Pick-up button
―  Hang-up button
am2zzn00004627


Operation

Switch name

Operation
Volume adjustment switch
Audio volume can be adjusted.
Cue/Automatic band selector switch
Cues and fast-forwards or reverses the tracks, or switches the FM/AM/Internet radio stations.
INFO button
Trip computer system display can be changed. For the display content, refer to the [TRIP COMPUTER INFORMATION SYSTEM]. (See TRIP COMPUTER INFORMATION SYSTEM.)
Mute button
Audio volume can be muted. Pressing it again after muting returns the volume to the previous level.
Talk button
Initiates voice recognition mode.
Pick-up button
During incoming call
•  Receives phone call
Other than during incoming call
•  Switches display of center display to call history screen.
Hang-up button
Hangs up the phone call.


Fail-safe

•  Not applicable
