MICROPHONE [WITHOUT CENTER DISPLAY]


id0920z9011600


Purpose, Function

•  Converts the voice (voice commands) spoken into the microphone by the user to an electric signal and sends the signal to the Bluetooth® unit.

Construction

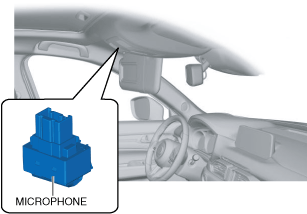

•  A microphone is located next to the map light to reduce noise caused by road noise while the vehicle is being driven and air blown by the air conditioner.
ac5wzn00003945

Operation

•  For the voice recognition microphone operation, refer to the [ENTERTAINMENT SYSTEM]. (See ENTERTAINMENT SYSTEM [WITHOUT CENTER DISPLAY].)

Fail-safe

•  Not applicable
