AUDIO AMPLIFIER [WITH CENTER DISPLAY]

id0920zz011200


Purpose

•  The audio signal (analog voltage waveform) output from the unit equipped on the vehicle is converted into a digital pulse. The converted digital pulse signal is amplified, converted to an analog signal again, and sent to the speakers.

Function


Road noise correction system (AudioPilot®)

•  The volume of the music constituent obscured by noise is corrected by the audio amplifier based on the cabin noise measured by the AudioPilot® microphone and the vehicle speed signal sent from the instrument cluster.


On-board diagnostic function

•  The audio amplifier has an on-board diagnostic function to facilitate system diagnosis. DTCs are stored in the event of a malfunction occurring. For details, refer to the [ON-BOARD DIAGNOSTIC SYSTEM]. (See ON-BOARD DIAGNOSTIC [AUDIO AMPLIFIER (WITH CENTER DISPLAY)].)


Active engine sound function

•  The active engine sound function supplements the engine sound. A sound for supplementing the engine sound is output from the speakers equipped on the vehicle providing the driver an acceleration feel and a sense of speed.


Structure/Construction

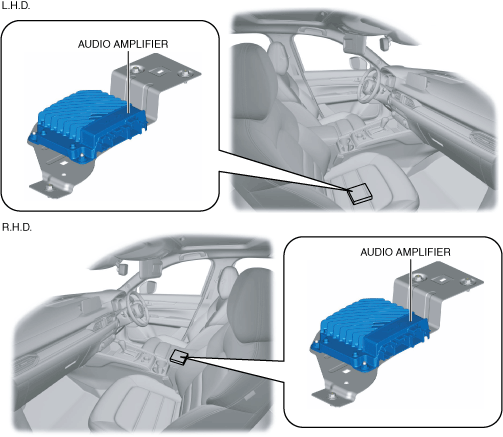

•  The audio amplifier is positioned under the front seat (RH).
ac5wzn00003980

Terminal Layout and Signal

L.H.D.

Terminal

Signal
1A
—
1B
—
1C
—
1D
—
1E
—
1F
—
1G
AudioPilot® (+)
1H
AudioPilot® (-)
1I
Rear speaker RH input(+)
1J
Rear speaker RH input (-)
1K
Rear speaker LH input (+)
1L
Rear speaker LH input (-)
1M
Front speaker RH input (+)
1N
Front speaker RH input (-)
1O
Front speaker LH input (+)
1P
Front speaker LH input (-)
2A
—
2B
—
2C
Rear door speaker output LH (-)
2D
ACC
2E
Rear door speaker output LH (+)
2F
Audio amplifier control
2G
Front center speaker output (+)
2H
Pulse width modulation (PWM) control
2I
Front center speaker output (-)
2J
i-stop signal (With i-stop / without i-ELOOP)
2K
Rear door speaker output RH (-)
2L
CAN_H
2M
Rear door speaker output RH (+)
2N
CAN_L
2O
Rear speaker LH/RH (+)
2P
Rear speaker LH/RH (-)
3A
B+
3B
Ground
3C
Front door speaker output LH (+) / tweeter output LH (+)
3D
Front door speaker output LH (-) / tweeter output LH (-)
3E
Bass-box output (+)
3F
Bass-box output (-)
3G
Front door speaker output RH (-) / tweeter output RH (-)
3H
Front door speaker output RH (+) / tweeter output RH (+)

R.H.D.

Terminal

Signal
1A
—
1B
—
1C
—
1D
—
1E
—
1F
—
1G
AudioPilot® (+)
1H
AudioPilot® (-)
1I
Rear speaker LH input(+)
1J
Rear speaker LH input (-)
1K
Rear speaker RH input (+)
1L
Rear speaker RH input (-)
1M
Front speaker LH input (+)
1N
Front speaker LH input (-)
1O
Front speaker RH input (+)
1P
Front speaker RH input (-)
2A
—
2B
—
2C
Rear door speaker output RH (-)
2D
ACC
2E
Rear door speaker output RH (+)
2F
Audio amplifier control
2G
Front center speaker output (+)
2H
Pulse width modulation (PWM) control
2I
Front center speaker output (-)
2J
i-stop signal
2K
Rear door speaker output LH (-)
2L
CAN_H
2M
Rear door speaker output LH (+)
2N
CAN_L
2O
Rear speaker LH/RH (+)
2P
Rear speaker LH/RH (-)
3A
B+
3B
Ground
3C
Front door speaker output RH (+) / tweeter output RH (+)
3D
Front door speaker output RH (-) / tweeter output RH (-)
3E
Bass-box output (+)
3F
Bass-box output (-)
3G
Front door speaker output LH (-) / tweeter output LH (-)
3H
Front door speaker output LH (+) / tweeter output LH (+)

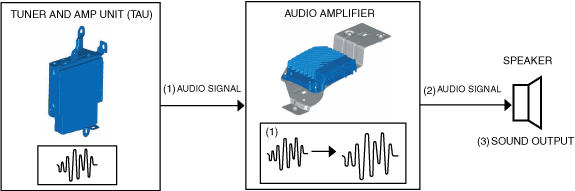

Operation

1.  The audio amplifier amplifies the audio signal sent (1) from the tuner and amp unit (TAU) and sends (2) it to the speakers.
2.  The speakers produce (3) audio based on the audio signal sent from the TAU.
ac5wzn00003981

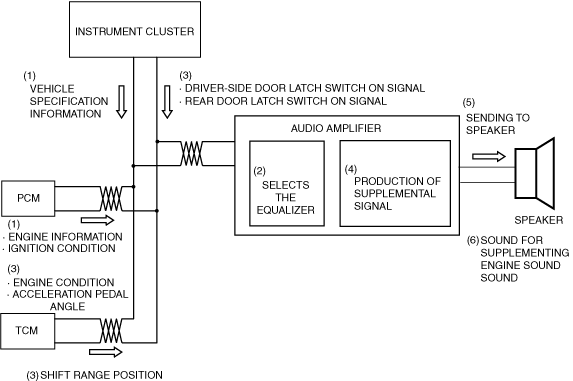

Active engine sound function

Note
•  When all of the following conditions are met, the active engine sound function operates.
―  Active engine sound function is ON (disconnecting M-MDS)
―  All doors, liftgate, and trunk lid are closed
―  Configuration is completed
―  CAN information received normally

1.  When the ignition is switched ON (engine off or on), the PCM sends the engine information and the ignition condition, and the instrument cluster sends vehicle specification information to the audio amplifier via a CAN signal.

2.  When the engine information and the specification information for the ignition condition and vehicle are received, the audio amplifier selects the equalizer built into the audio amplifier and sets the frequency output from the speaker.

3.  The PCM sends the engine condition signal and acceleration pedal angle, the TCM sends the shift range position, and the instrument cluster sends a driver-side door latch switch on signal and rear door latch switch on signal to the audio amplifier via a CAN signal.

4.  The audio amplifier analyzes the engine load conditions, calculates the range of insufficient engine sound, and produces a supplemental signal based on the signal received from the PCM, TCM and instrument cluster.

5.  The audio amplifier sends the produced supplemental signal to the front door speaker and the front side speaker.

6.  The front door speaker and the front side speaker output a sound for supplementing the engine sound based on the produced supplemental signal sent from the audio amplifier.

ac9wzn00001740


Fail-safe

•  Not applicable
