DVD/CD PLAYER [WITH CENTER DISPLAY]

id0920zz114100


Purpose

•  The DVD/CD player sends the inserted CD file information (CD)/DVD image information (DVD) to the connectivity master unit (CMU), and an audio signal to the tuner and amp unit (TAU).

Function


DVD playback function

•  Playback of images and audio is possible by inserting a commercially-available DVD into the DVD/CD player.
Note
•  If any one of the following conditions is met, the DVD images are not displayed and only audio is played.
―  Parking brake OFF signal is received (parking brake is released)
―  Vehicle speed exceeds 9 km/h {6 mph}
•  When all of the following conditions are met, the DVD images are displayed again.
―  Parking brake ON signal is received (parking brake is applied)
―  Vehicle speed is 7 km/h {4 mph} or less


Specification

Type

Playback function file
Music/MP3/WMA/AAC CD player
•  Music data (CD-DA)
•  MP3/WMA (Windows Media Audio)/AAC (Advanced Audio Coding) files
DVD VIDEO/DVD-VR PLAYER
•  DVD VIDEO/DVD-VR FILE


Construction

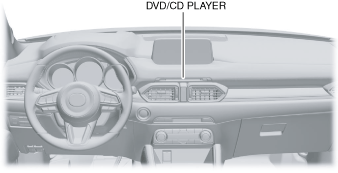

•  The DVD/CD player is located in the dashboard.
ac5wzn00004276

Input/output signal table

Terminal

Signal
A
Ground
B
—
C
—
D
Illumination power supply (-)
F
—
G
Local HS-CAN_H
H
Local HS-CAN_L
J
—
L
DVD/CD audio output LH (+)
N
DVD/CD audio output LH (-)
P
DVD/CD audio output RH (+)
R
DVD/CD audio output RH (-)
S
—
T
—
U
Video signal output
V
Video signal output ground
W
TNS signal input
X
—
Y
ACC
Z
B+


Operation

•  For the DVD/CD player operation, refer to the ENTERTAINMENT SYSTEM. (See ENTERTAINMENT SYSTEM [WITH CENTER DISPLAY].)

Fail-safe

•  Not applicable
