USB POWER OUTLET

id092100112000

Purpose

• By connecting a USB device to the USB power outlet, power is supplied to enable in-vehicle battery charging.

Function

• The USB power outlet supplies power to USB devices rated at 10.5 W (DC5 V, 2.1 A) or less maximum power consumption.

Structure/Construction

• The USB power outlet is located on the armrest of the second-row seat.

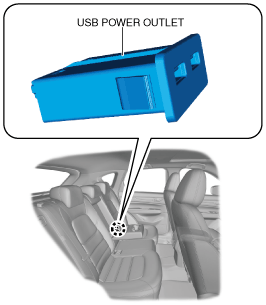

ac5wzn00004152

Operation

1. When the ignition is switched to ACC or ON (engine off or on), the start stop unit turns the outlet relay on (1).

2. When the outlet relay turns on, electric current flows (2) to the center accessory socket.

3. The center accessory socket supplies power constantly to the electrical device inserted in the plug.

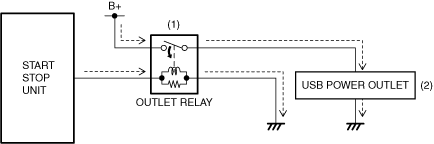

ac5wzn00004153

Fail-safe

• Not applicable
