USB POWER OUTLET REMOVAL/INSTALLATION

id092100112100

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

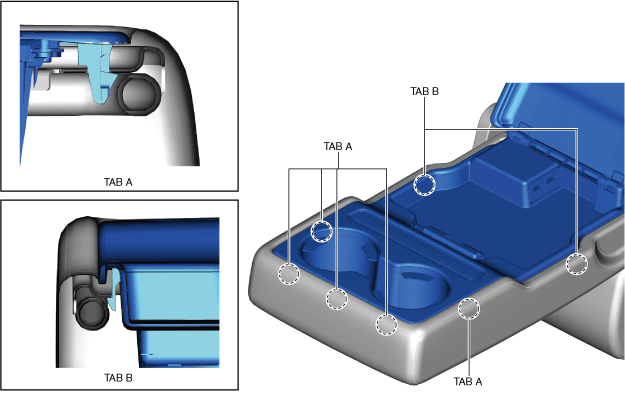

2.  Detach the tray tab from the rear seat center armrest, and remove the tray from the rear seat center armrest.

ac5uuw00007212

3.  Disconnect the connector.

ac5uuw00007213

4.  While pressing the USB power outlet tabs in the direction of arrows (1) shown in the figure, press the USB power outlet in the direction of arrow (2) to detach the USB power outlet from the tray.

ac5uuw00007214

5.  Remove the USB power outlet.

ac5uuw00007215

6.  Install in the reverse order of removal.
