RELAY LOCATION

id092100800600

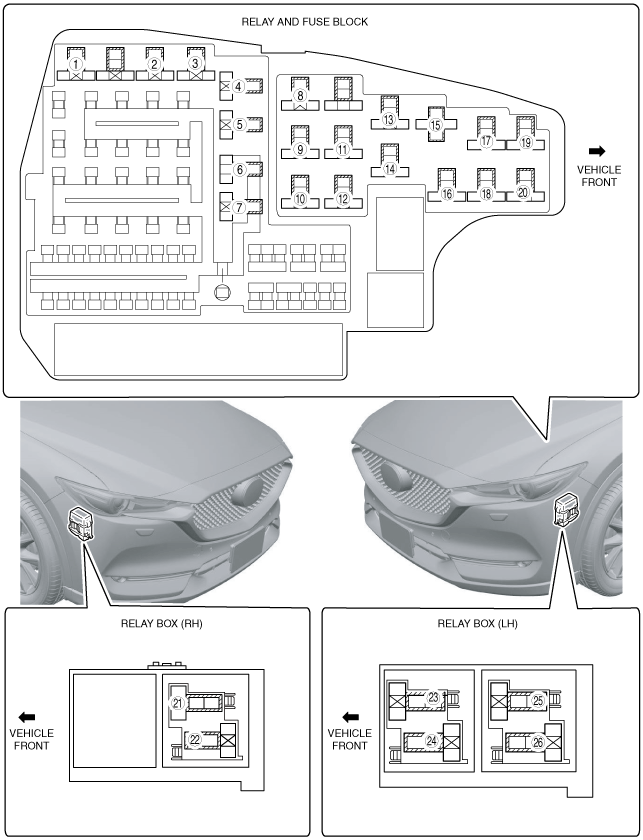

SKYACTIV-G 2.0,SKYACTIV-G 2.5

ac5wzw00009661

1	Rear window defogger relay
2	Steering warmer relay
3	Electric variable valve timing relay
4	•  Fuel injector relay (without coolant control valve) •  Sub relay (with coolant control valve)
5	Electric AT oil pump relay
6	Headlight LO relay No.1
7	IG1 relay
8	Ignition relay (IG1_STAB)
9	Headlight HI relay
10	Starter relay
11	ACC relay
12	Front fog light relay
13	Horn relay
14	TNS relay
15	Blower relay
16	Outlet relay
17	Ignition relay (ACC_STAB)
18	DRL relay
19	Windshield wiper de-icer relay
20	Cooling fan relay No.3
21	Cooling fan relay No.1
22	Cooling fan relay No.2
23	Main relay
24	Headlight LO relay No.2
25	A/C relay
26	Fuel pump relay

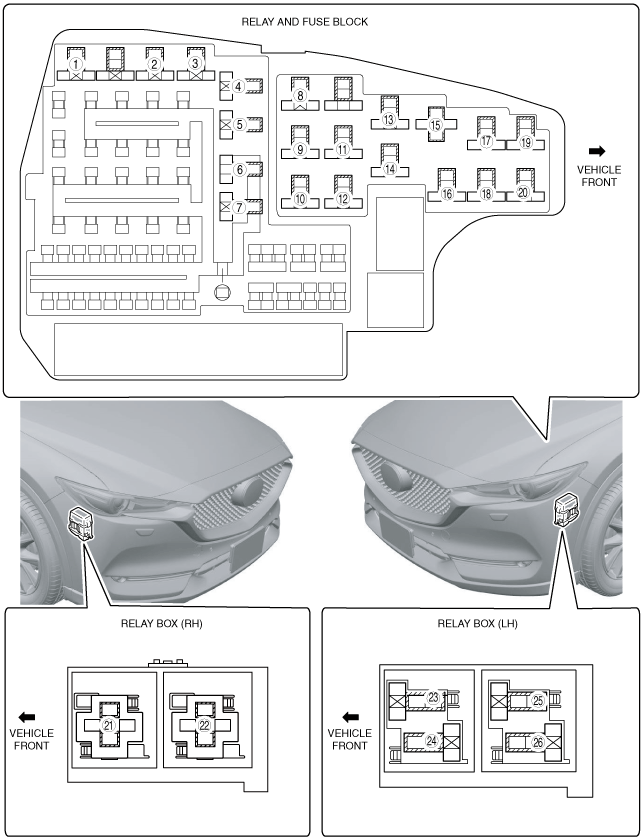

SKYACTIV-G 2.5T

ac5wzw00009663

1	Rear window defogger relay
2	Steering warmer relay
3	Electric variable valve timing relay
4	Fuel injector relay
5	Electric AT oil pump relay
6	Headlight LO relay No.1
7	IG1 relay
8	Ignition relay (IG1_STAB)
9	Headlight HI relay
10	Starter relay
11	ACC relay
12	Front fog light relay
13	Horn relay
14	TNS relay
15	Blower relay
16	Outlet relay
17	Ignition relay (ACC_STAB)
18	DRL relay
19	Windshield wiper de-icer relay
20	Cooling fan relay No.3
21	Cooling fan relay No.2
22	Cooling fan relay No.1
23	Main relay
24	Headlight LO relay No.2
25	A/C relay
26	Fuel pump relay

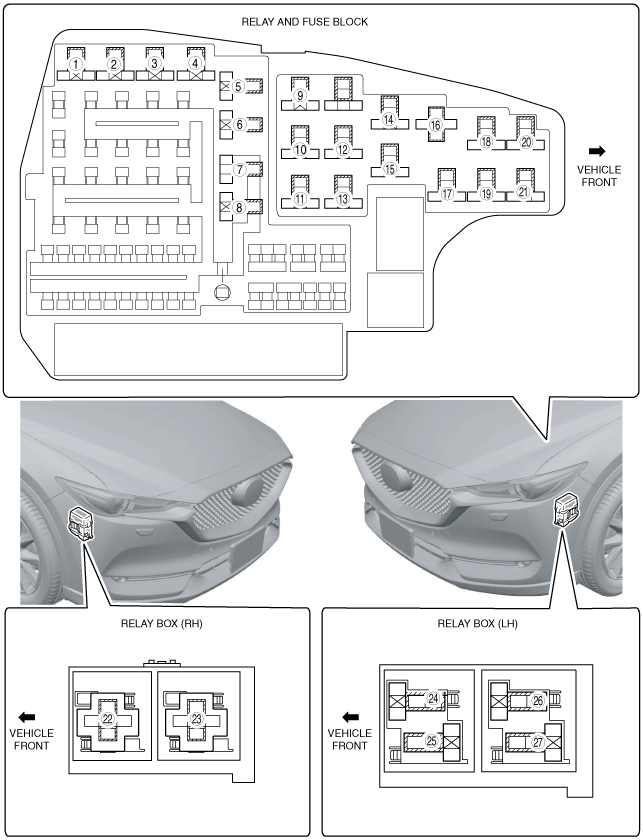

SKYACTIV-D 2.2

ac5wzw00009662

1	Rear window defogger relay
2	SCR relay No.2 (with SCR system)
3	Steering warmer relay
4	SCR relay No.1 (with SCR system)
5	Check connector
6	Electric AT oil pump relay
7	Headlight LO relay No.1
8	IG1 relay
9	Ignition relay (IG1_STAB)
10	Headlight HI relay
11	Starter relay
12	ACC relay
13	Front fog light relay
14	Horn relay
15	TNS relay
16	Blower relay
17	Outlet relay
18	Ignition relay (ACC_STAB)
19	DRL relay
20	Windshield wiper de-icer relay
21	Cooling fan relay No.3
22	Cooling fan relay No.2
23	Cooling fan relay No.1
24	Main relay
25	Headlight LO relay No.2
26	A/C relay
27	Blow-by heater relay
