POWER SYSTEMS

id092100960000


Outline

•  The power systems supply electrical power stored in the battery to the vehicle's electrical devices as their power supply.
•  Three types of electric power supply are used for the systems and parts depending on their usage.
―  Power is directly supplied from the battery
―  Power is supplied when ignition is switched ON (engine off)
―  Power is supplied when ignition is switched ON (engine on)

Specification

SKYACTIV-G 2.0, SKYACTIV-G 2.5

Component parts

Specification
Relay and fuse block
Wiring harness-integrated type
Fuse block
Wiring harness-integrated type
Relay box
Wiring harness-integrated type
Main fuse
MAIN fuse capacity
200 A
STR fuse rating (without i-ELOOP)
250 A
STR fuse rating (with i-ELOOP)
200 A
EPAS fuse capacity
60 A
DCDC fuse rating (without i-ELOOP)
50 A
DCDC fuse rating (with i-ELOOP)
200 A
Accessory socket
Rated voltage
DC 12 V
Rated load
20 A
USB power outlet
Rated voltage
DC 5 V
Rated load
2.1 A

SKYACTIV-G 2.5T

Component parts

Specification
Relay and fuse block
Wiring harness-integrated type
Fuse block
Wiring harness-integrated type
Relay box
Wiring harness-integrated type
Main fuse
FAN fuse capacity
50 A
EPAS fuse capacity
60 A
ADD FAN fuse capacity
50 A
MAIN fuse capacity
200 A
DCDC fuse capacity
50 A
STR fuse capacity
200 A
Accessory socket
Rated voltage
DC 12 V
Rated load
20 A
USB power outlet
Rated voltage
DC 5 V
Rated load
2.1 A

SKYACTIV-D 2.2

Component parts

Specification
Relay and fuse block
Wiring harness-integrated type
Fuse block
Wiring harness-integrated type
Relay box
Wiring harness-integrated type
Main fuse
GLOW fuse capacity
80 A
EPAS fuse capacity
60 A
PTC fuse capacity
100 A
MAIN fuse capacity
200 A
STR fuse capacity
450 A
Accessory socket
Rated voltage
DC 12 V
Rated load
20 A
USB power outlet
Rated voltage
DC 5 V
Rated load
2.1 A


Structure/Construction

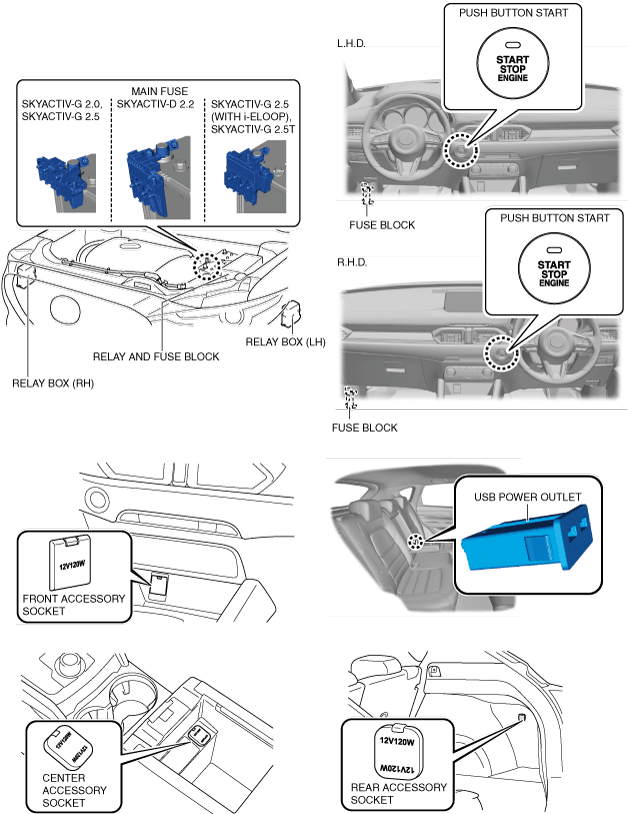

Structural view

ac5wzn00004562
