INSTRUMENT CLUSTER INSPECTION
id092200010600
Speedometer Inspection
Using a speedometer tester
1. Adjust the tire pressure to the specification. (See WHEEL AND TIRE SPECIFICATION.)
2. Using a speedometer tester, verify that the values are as indicated in the table.
Type A
Speedometer indication (km/h) |
Speedometer tester indication (km/h) |
---|---|
20
|
20.40—22.40
|
40
|
40.80—42.80
|
60
|
61.20—63.20
|
80
|
81.60—83.60
|
100
|
102.00—104.00
|
120
|
122.40—124.40
|
140
|
142.80—144.80
|
160
|
163.20—165.20
|
180
|
183.60—185.60
|
200
|
204.00—206.00
|
220
|
224.40—226.40
|
240
|
244.80—246.80
|
Type B (European (L.H.D. U.K.), General (L.H.D. R.H.D.) specs., Australian specs.)
Speedometer indication (km/h) |
Speedometer tester indication (km/h) |
---|---|
20
|
20.40—25.0
|
40
|
40.80—45.50
|
60
|
61.20—66.00
|
80
|
81.60—86.60
|
100
|
102.00—107.50
|
120
|
122.40—128.40
|
140
|
142.80—149.30
|
160
|
163.20—170.20
|
180
|
183.60—190.60
|
200
|
204.00—211.50
|
220
|
224.40—232.40
|
240
|
244.80—252.80
|
Type B (General (L.H.D. R.H.D.) specs.)
Speedometer tester indication (km/h) |
Allowable range (km/h) |
---|---|
20
|
18.00—22.00
|
40
|
38.00—42.00
|
60
|
57.75—62.25
|
80
|
77.50—82.50
|
100
|
97.25—102.75
|
120
|
117.00—123.00
|
140
|
136.75—143.25
|
160
|
156.50—163.50
|
180
|
176.50—183.50
|
200
|
196.25—203.75
|
220
|
216.00—224.00
|
240
|
236.00—244.00
|
Type B (U.K. specs.)
Speedometer tester indication (mph) |
Allowable range (mph) |
---|---|
10
|
10.20—13.00
|
20
|
20.40—23.20
|
30
|
30.60—33.40
|
40
|
40.80—43.80
|
50
|
51.00—54.20
|
60
|
61.20—64.60
|
70
|
71.40—75.00
|
80
|
81.60—85.40
|
90
|
91.80—95.80
|
100
|
102.00—106.20
|
110
|
112.20—116.60
|
120
|
122.40—127.00
|
130
|
132.60—137.40
|
140
|
142.80—147.80
|
150
|
153.00—158.20
|
Type C (European (L.H.D. U.K.), General (L.H.D. R.H.D.) specs., Australian specs.)
Speedometer indication (km/h) |
Speedometer tester indication (km/h) |
---|---|
20
|
20.40—25.26
|
40
|
40.80—45.46
|
60
|
61.20—66.06
|
80
|
81.60—86.66
|
100
|
102.00—107.76
|
120
|
122.40—129.08
|
140
|
142.80—150.28
|
160
|
163.20—170.68
|
180
|
183.60—191.08
|
200
|
204.00—211.74
|
220
|
224.40—232.76
|
240
|
244.80—253.16
|
Type C (U.K. specs.)
Speedometer tester indication (mph) |
Allowable range (mph) |
---|---|
10
|
10.20—13.20
|
20
|
20.40—23.30
|
30
|
30.60—33.60
|
40
|
40.80—43.90
|
50
|
51.00—54.28
|
60
|
61.20—64.88
|
70
|
71.40—75.56
|
80
|
81.60—86.12
|
90
|
91.80—96.44
|
100
|
102.00—106.64
|
110
|
112.20—116.84
|
120
|
122.40—127.24
|
130
|
132.60—137.80
|
140
|
142.80—148.00
|
150
|
153.00—158.20
|
Tachometer Inspection
1. Connect the M-MDS to the DLC-2.
2. After vehicle identification, select the following from the M-MDS initialization screen.
3. Using the simulation function TACHOMTR, verify that the values are as indicated in the table.
M-MDS display |
Tachometer display |
---|---|
3000 RPM
|
Tachometer needle moves to approx. 3,150 rpm.
|
6000 RPM
|
Tachometer needle moves to approx. 6,120 rpm.
|
Off
|
Tachometer needle moves to bottommost position.
|
LCD Inspection
1. Connect the M-MDS to the DLC-2.
2. After vehicle identification, select the following from the M-MDS initialization screen.
3. Using the simulation function item LCD_SEG, verify that the LDC displays as shown in the following figure.

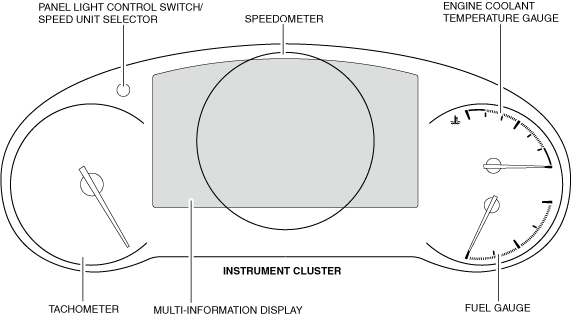

Type A (with multi-information display)
am6xun00003710
|
Type B (with multi-information display)
ac5wzn00004341
|

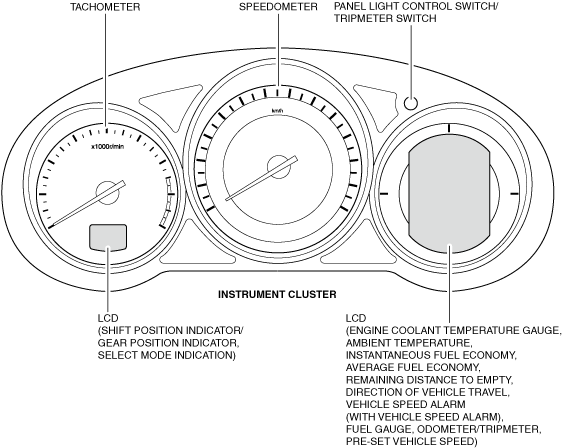

Type C (without multi-information display)
am6zzn00004746
|
Warning/Indicator Light Illumination Inspection
1. Connect the M-MDS to the DLC-2.
2. After vehicle identification, select the following from the M-MDS initialization screen.
3. Using the simulation function WL+IL, verify that the warning/indicator lights in the following table are illuminated.
Type A
ac5wzn00005200
|
No. |
Warning light/Indicator light |
Name |
Message is displayed in multi-information display when warning/indicator light turns on/flashes |
Message is displayed in center display when warning/indicator light turns on/flashes |
Comment |
Warning/indicator light turned on when ignition is switched ON (engine off or on) |
---|---|---|---|---|---|---|
1
|
![]() |
Brake system warning light
|
×
|
×
|
—
|
×
|
2
|
![]() |
Air bag/seat belt pre-tensioner system warning light
|
—
|
×
|
—
|
—
|
3
|
![]() |
Electric parking brake indicator light
|
×
|
—
|
—
|
—
|
4
|
![]() |
Engine oil warning light
|
×
|
×
|
—
|
×
|
5
|
![]() |
Direction indicator/hazard warning indicator lights
|
—
|
—
|
—
|
—
|
6
|
![]() |
Selective catalytic reduction (SCR) system warning light
|
×
|
×
|
SKYACTIV-D 2.2
|
—
|
7
|
![]() |
Engine oil level warning light
|
×
|
×
|
With engine oil level sensor
|
—
|
8
|
![]() |
i-stop warning light (amber)/i-stop indicator light (green)
|
—
|
×
|
With i-stop system
|
×
|
9
|
![]() |
ABS warning light
|
—
|
×
|
—
|
×
|
10
|
![]() |
Seat belt warning light
|
—
|
—
|
—
|
—
|
11
|
![]() |
Charging system warning light
|
×
|
×
|
—
|
×
|
12
|
![]() |
Security indicator light
|
—
|
—
|
—
|
×
|
13
|
![]() |
Door-ajar warning light
|
—
|
—
|
—
|
—
|
14
|
![]() |
Smart brake support/smart city brake support (SBS/SCBS) OFF indicator light
|
—
|
—
|
With smart city brake support (SCBS) or smart brake support (SBS)
|
×
|
15
|
![]() |
Lane-keep assist system OFF indicator light/LDWS OFF indicator light
|
—
|
—
|
With lane departure warning system (LDWS) or lane-keep assist system
|
—
|
16
|
![]() |
TCS OFF indicator light
|
—
|
—
|
—
|
×
|
17
|
![]() |
Blind spot monitoring (BSM) OFF indicator light
|
—
|
—
|
With blind spot monitoring (BSM) system
|
—
|
18
|
![]() |
Electric parking brake warning light
|
×
|
×
|
—
|
—
|
19
|
![]() |
Low fuel warning light
|
×
|
—
|
—
|
—
|
20
|
![]() |
120 km/h warning light
|
—
|
—
|
With 120 km/h warning light
|
X
|
21
|
![]() |
Lights-on indicator light
|
×
|
—
|
—
|
—
|
22
|
![]() |
HBC indicator light (green)/HBC warning light (amber)/Adaptive LED headlights indicator light (green)/adaptive LED headlights warning light (amber)
|
×
|
×
|
With high beam control (HBC) system or adaptive LED headlights
|
×
|
23
|
![]() |
Rear fog light indicator light
|
—
|
—
|
With rear fog light
|
—
|
24
|
![]() |
Front fog light indicator light
|
—
|
—
|
With front fog light
|
—
|
25
|
![]() |
Headlight high-beam indicator light
|
—
|
—
|
—
|
—
|
26
|
![]() |
Mazda radar cruise control with stop & go function (MRCC with stop & GO function) indicator light
|
×
|
—
|
—
|
×
|
27
|
![]() |
TCS/DSC indicator light
|
—
|
×
|
—
|
×
|
28
|
![]() |
Tire pressure monitoring system warning light
|
×
|
×
|
—
|
×
|
29
|
![]() |
LED headlight warning light
|
—
|
×
|
With headlight (LED type)
|
—
|
30
|
![]() |
Glow indicator light
|
—
|
—
|
SKYACTIV-D 2.2
|
—
|
31
|
![]() |
Check engine light
|
—
|
×
|
—
|
×
|

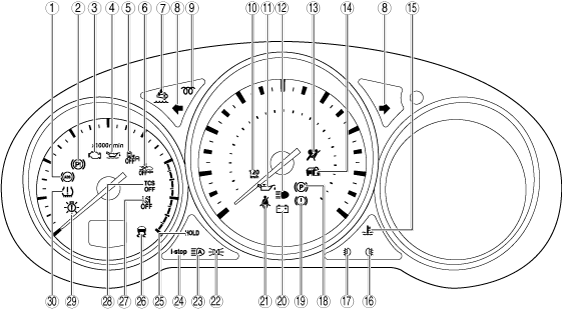

Type B
ac5wzn00005201
|
No. |
Warning light/Indicator light |
Name |
Message is displayed in multi-information display when warning/indicator light turns on/flashes |
Message is displayed in center display when warning/indicator light turns on/flashes |
Comment |
Warning/indicator light turned on when ignition is switched ON (engine off or on) |
---|---|---|---|---|---|---|
1
|
![]() |
ABS warning light
|
—
|
×
|
—
|
×
|
2
|
![]() |
Electric parking brake warning light
|
×
|
×
|
—
|
—
|
3
|
![]() |
Check engine light
|
—
|
×
|
—
|
×
|
4
|
![]() |
Engine oil level warning light
|
×
|
×
|
With engine oil level sensor
|
—
|
5
|
![]() |
Blind spot monitoring (BSM) OFF indicator light
|
×
|
×
|
—
|
—
|
6
|
![]() |
Smart brake support/smart city brake support (SBS/SCBS) OFF indicator light
|
—
|
—
|
With SBS/SCBS
|
×
|
7
|
![]() |
Selective catalytic reduction (SCR) system warning light
|
×
|
×
|
SKYACTIV-D 2.2
|
—
|
8
|
![]() |
Direction indicator/hazard warning indicator lights
|
—
|
—
|
—
|
—
|
9
|
![]() |
Glow indicator light
|
—
|
—
|
SKYACTIV-D 2.2
|
×
|
10
|
![]() |
120 km/h warning light
|
—
|
—
|
With 120 km/h warning light
|
×
|
11
|
![]() |
Engine oil warning light
|
—
|
×
|
—
|
×
|
12
|
![]() |
Headlight high-beam indicator light
|
—
|
—
|
—
|
—
|
13
|
![]() |
Air bag/front seat belt pretensioner system warning light
|
—
|
×
|
—
|
×
|
14
|
![]() |
Security indicator light
|
—
|
—
|
—
|
×
|
15
|
![]() |
Low engine coolant temperature indicator light (blue)/high engine coolant temperature warning light (red)
|
×
|
×
|
—
|
×
|
16
|
![]() |
Rear fog light indicator light
|
—
|
—
|
With rear fog light
|
—
|
17
|
![]() |
Front fog light indicator light
|
—
|
—
|
With front fog light
|
—
|
18
|
![]() |
Electric parking brake indicator light
|
×
|
—
|
—
|
—
|
19
|
![]() |
Brake system warning light
|
—
|
×
|
—
|
×
|
20
|
![]() |
Charging system warning light
|
×
|
×
|
—
|
×
|
21
|
![]() |
Seat belt warning light
|
—
|
—
|
—
|
—
|
22
|
![]() |
Lights-on indicator light
|
×
|
—
|
—
|
—
|
23
|
![]() |
HBC indicator light (green)/HBC warning light (amber)/Adaptive LED headlights indicator light (green)/adaptive LED headlights warning light (amber)
|
×
|
×
|
With high beam control (HBC) system or adaptive LED headlights
|
×
|
24
|
![]() |
i-stop warning light (amber)/i-stop indicator light (green)
|
—
|
×
|
With i-stop system
|
×
|
25
|
![]() |
Mazda Radar Cruise Control with stop & go function (MRCC with stop & go function) indicator light
|
—
|
—
|
With Mazda Radar Cruise Control with stop & go function (MRCC with stop & go function)
|
—
|
AUTOHOLD active indicator light
|
—
|
—
|
With AUTOHOLD
|
—
|
||
26
|
![]() |
TCS/DSC indicator light
|
—
|
×
|
—
|
×
|
27
|
![]() |
Lane-keep assist system OFF indicator light/LDWS OFF indicator light
|
—
|
—
|
With lane departure warning system (LDWS) or lane-keep assist system
|
—
|
28
|
![]() |
TCS OFF indicator light
|
—
|
—
|
—
|
×
|
29
|
![]() |
LED headlight warning light
|
—
|
×
|
—
|
—
|
30
|
![]() |
Tire pressure monitoring system warning light
|
×
|
×
|
With TPMS
|
×
|

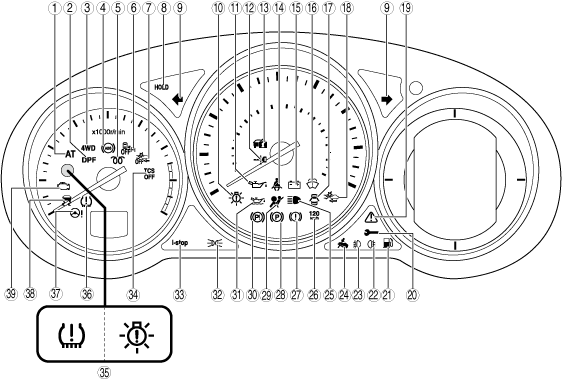

Type C
ac5wzn00005202
|
No. |
Warning light/Indicator light |
Name |
Message is displayed in center display when warning/indicator light turns on/flashes |
Comment |
Warning/indicator light turned on when ignition is switched ON (engine off or on) |
---|---|---|---|---|---|
1
|
![]() |
Automatic transaxle warning light
|
×
|
—
|
×
|
2
|
![]() |
Diesel particulate filter indicator light
|
—
|
SKYACTIV-D 2.2
|
×
|
3
|
![]() |
4WD warning light
|
×
|
4WD
|
×
|
4
|
![]() |
ABS warning light
|
×
|
—
|
×
|
5
|
![]() |
Glow indicator light
|
—
|
SKYACTIV-D 2.2
|
×
|
6
|
![]() |
Blind spot monitoring (BSM) OFF indicator light
|
×
|
With BSM
|
×
|
7
|
![]() |
Smart city brake support (SCBS) OFF indicator light
|
—
|
With SCBS
|
×
|
8
|
![]() |
Mazda Radar Cruise Control with stop & go function (MRCC with stop & go function) indicator light
|
—
|
With Mazda Radar Cruise Control with stop & go function (MRCC with stop & go function)
|
—
|
AUTOHOLD active indicator light
|
—
|
With AUTOHOLD
|
—
|
||
9
|
![]() |
Direction indicator/hazard warning indicator lights
|
—
|
—
|
—
|
10
|
![]() |
LED headlight warning light
|
×
|
—
|
—
|
11
|
![]() |
Engine oil warning light
|
×
|
—
|
×
|
12
|
![]() |
KEY warning light (red)/KEY indicator light (green)
|
×
|
—
|
×
|
13
|
![]() |
Security indicator light
|
—
|
—
|
×
|
14
|
![]() |
Seat belt warning light
|
—
|
—
|
—
|
15
|
![]() |
Charging system warning light
|
×
|
—
|
×
|
16
|
![]() |
Low washer fluid level warning light
|
×
|
With washer fluid-level sensor
|
—
|
17
|
![]() |
Door-ajar warning light
|
—
|
—
|
—
|
18
|
![]() |
Smart city brake support (SCBS) indicator light (red)/warning light (amber)
|
×
|
With SCBS
|
×
|
19
|
![]() |
Master warning light
|
×
|
—
|
×
|
20
|
![]() |
Wrench indicator light
|
×
|
—
|
×
|
21
|
![]() |
Low fuel warning light
|
×
|
—
|
—
|
22
|
![]() |
Rear fog light indicator light
|
—
|
With rear fog light
|
—
|
23
|
![]() |
Front fog light indicator light
|
—
|
With front fog light
|
—
|
24
|
![]() |
Brake pedal operation demand indicator light
|
—
|
—
|
—
|
25
|
![]() |
Headlight high-beam indicator light
|
—
|
—
|
—
|
26
|
![]() |
120 km/h warning light
|
—
|
With 120 km/h warning light
|
×
|
27
|
![]() |
Brake system warning light
|
×
|
—
|
×
|
28
|
![]() |
Electric parking brake indicator light
|
—
|
—
|
—
|
29
|
![]() |
Air bag/front seat belt pretensioner system warning light
|
×
|
—
|
×
|
30
|
![]() |
Electric parking brake warning light
|
×
|
—
|
—
|
31
|
![]() |
Engine oil level warning light
|
×
|
With engine oil level sensor
|
—
|
32
|
![]() |
Lights-on indicator light
|
—
|
—
|
—
|
33
|
![]() |
i-stop warning light (amber)/i-stop indicator light (green)
|
×
|
With i-stop system
|
×
|
34
|
![]() |
TCS OFF indicator light
|
—
|
—
|
×
|
35
|
![]() |
Tire pressure monitoring system warning light
|
×
|
With TPMS
|
×
|
![]() |
LED headlight warning light
|
×
|
—
|
—
|
|
36
|
![]() |
Tire pressure monitoring system warning light
|
×
|
With TPMS
|
×
|
37
|
![]() |
Power steering malfunction indicator light
|
×
|
—
|
×
|
38
|
![]() |
TCS/DSC indicator light
|
×
|
—
|
×
|
39
|
![]() |
Check engine light
|
×
|
—
|
×
|
Alarm Inspection
1. Connect the M-MDS to the DLC-2.
2. After vehicle identification, select the following from the M-MDS initialization screen.
3. Using the simulation function ALARM, verify that the buzzer sounds.
