HORN

id092200021700

Purpose, Function

• The horn sounds according to the horn switch operation.

Structure/Construction

• Two horns with different frequencies have been adopted.

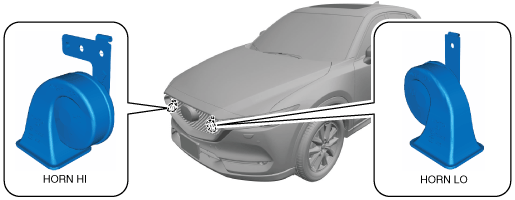

• Horn LO and HI are located inside the front bumper.

ac5wzn00004213

• The horn vibrates the diaphragm to apply vibration to the air and produces sound.

Operation

1. When the horn switch turns on (1), the horn relay turns on (2).

2. When the horn relay turns on, the horn LO and HI sound (3).

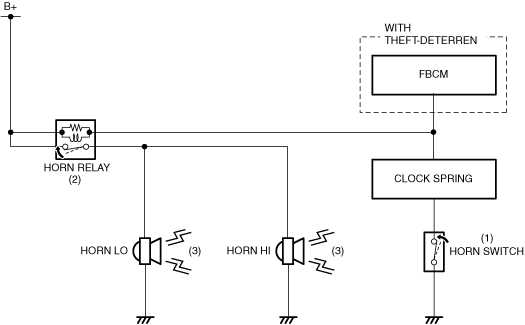

ac9wzn00001347

Fail-safe

• Not applicable
