BODY COMPONENTS CONSTRUCTION [CONSTRUCTION]

id098007739700

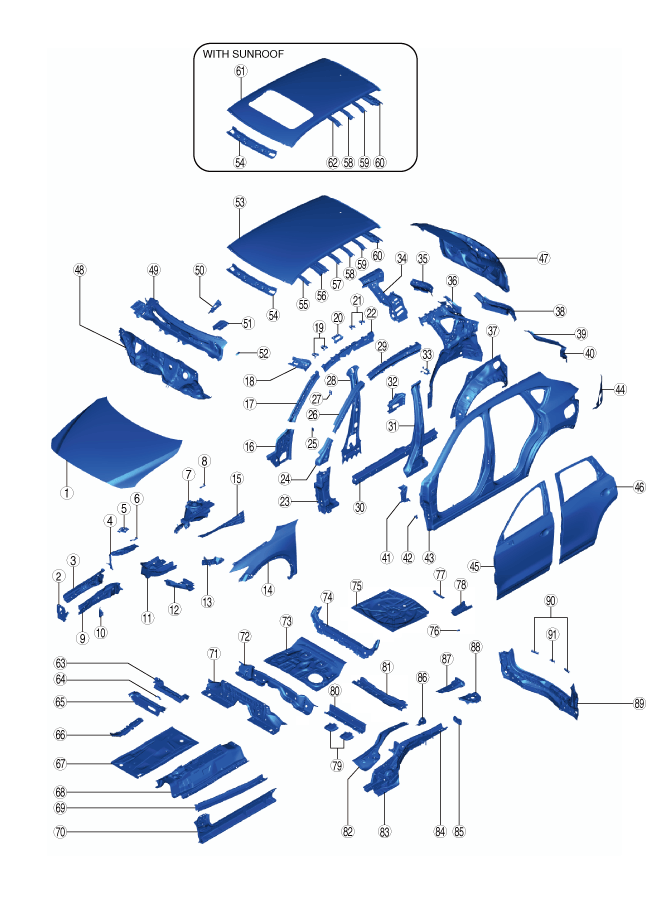

SKYACTIV-D 2.2 (European (L.H.D. U.K.) specs.)

ac5wzb00000569

No.	Part name			Ultra high-tension steel	High-tension steel	Rust proof steel	Thickness (mm) {in}
1	Bonnet (outer panel)			-	×	×	0.65 {0.026}
2	Bumper bracket component	Bumper bracket		×	-	×	2.60 {0.102}
		Suspension mounting reinforcement		-	×	×	2.90 {0.114}
		Outer frame reinforcement		-	×	×	2.00 {0.0787}
3	Front side frame (inner)	Front		-	×	×	1.40 {0.0551}
		Rear		×	-	×	1.60 {0.0630}
4	Shroud side member component	Apron reinforcement (lower)		-	×	×	0.80 {0.031}
		Shroud side panel		-	×	×	0.90 {0.035}
		Side stay		-	-	×	1.20 {0.0472}
		Apron reinforcement side stay (LH)		-	-	×	1.20 {0.0472}
		Shroud side member (RH)		-	-	×	0.70 {0.028}
5	Shroud upper reinforcement			-	×	×	0.80 {0.031}
6	Front wheel apron			-	-	×	0.80 {0.031}
7	Wheel apron panel component	Apron panel (front)		-	-	×	1.00 {0.0394}
		Apron reinforcement No.3		×	-	×	1.20 {0.0472}
		Apron reinforcement (upper)		-	-	×	1.00 {0.0394}
		Suspension housing (upper)		-	×	×	2.30 {0.0906}
		Suspension housing (lower)		-	-	×	1.20 {0.0472}
		Cowl side reinforcement		-	×	×	1.00 {0.0394}
		Wheel apron reinforcement (rear)		-	×	×	1.20 {0.0472}
		Apron reinforcement No.2		-	-	×	1.40 {0.0551}
		Apron reinforcement gusset		-	-	×	2.00 {0.0787}
8	Front fender junction			-	-	×	0.80 {0.031}
9	Front side frame (outer)	Front		-	×	×	1.40 {0.0551}
		Rear		×	-	×	1.60 {0.0630}
10	Light bracket			-	-	×	1.60 {0.0630}
11	Front frame (rear) component	Front frame (rear)		×	-	×	2.00 {0.0787}
		Side member		-	-	×	1.60 {0.0630}
		Lower arm bracket		-	-	×	1.60 {0.0630}
		Frame gusset		-	-	-	1.80 {0.0709}
12	Torque box			-	×	×	1.40 {0.0551}
13	Front fender stay component	Front fender stay		-	-	×	1.60 {0.0630}
		Bumper bracket		-	-	×	1.20 {0.0472}
		Front fender bracket		-	-	×	1.60 {0.0630}
14	Front fender panel			-	-	×	0.70 {0.028}
15	Cowl side reinforcement (front) component	Cowl side reinforcement (front)		×	-	×	1.40 {0.0551}
		Light bracket (rear)		-	×	×	0.80 {0.031}
16	Hinge pillar (inner)			×	-	×	1.20 {0.0472}
17	Front pillar (inner)			×	-	-	1.20 {0.0472}
18	Front pillar upper reinforcement			-	×	-	0.70 {0.028}
19	Nut plate (front)			-	-	-	1.20 {0.0472}
20	Roof corner gusset			-	×	-	2.00 {0.0787}
21	Nut plate (rear)			-	-	-	1.20 {0.0472}
22	Roof rail (inner) (front)			×	-	-	1.60 {0.0630}
23	Hinge reinforcement component	Hinge reinforcement		×	-	-	1.60 {0.0630}
		Hinge gusset (lower)		×	-	-	2.30 {0.0906}
		Hinge gusset		×	-	-	1.40 {0.0551}
24	Front pillar reinforcement (lower)			×	-	-	1.60 {0.0630}
25	Reinforcement checker			-	-	-	1.20 {0.0472}
26	Front pillar reinforcement (upper)			×	-	-	1.80 {0.0709}
27	Nut plate (door lock striker)			-	-	-	2.30 {0.0906}
28	Center pillar (inner)			-	×	×	1.60 {0.0630}
29	Roof rail reinforcement			×	-	-	1.60 {0.0630}
30	Side sill reinforcement			×	-	×	1.40 {0.0551}
31	Center pillar reinforcement	Inner		×	-	-	2.30 {0.0906}
		Outer	Upper	×	-	-	2.00 {0.0787}
			Lower	×	-	-	2.00 {0.0787}
32	Side sill reinforcement rear			×	-	×	1.80 {0.0709}
33	Quarter panel reinforcement			×	-	-	1.60 {0.0630}
34	Suspension housing reinforcement component	Suspension housing gusset		-	-	-	1.60 {0.0630}
		Suspension housing reinforcement		-	-	-	0.65 {0.026}
		C-pillar reinforcement No.1		×	-	-	1.20 {0.0472}
35	Rear side panel			-	-	×	0.70 {0.028}
36	Rear pillar (inner) component (upper)	Roof rail (inner) (rear)		-	-	×	0.70 {0.028}
		Rear pillar (inner) No.1		-	-	×	0.70 {0.028}
		C-pillar reinforcement No.2		-	-	×	0.70 {0.028}
		Beltline reinforcement (LH)		×	-	-	1.40 {0.0551}
		Corner plate		-	-	-	1.80 {0.0709}
		Wheel housing (inner)		-	-	×	0.70 {0.028}
		Suspension housing gusset		-	-	-	2.00 {0.0787}
		Package gusset		-	-	-	1.80 {0.0709}
		Side brace		-	-	-	1.80 {0.0709}
		Suspension housing upper		-	×	×	2.00 {0.0787}
37	Rear pillar (inner) component (lower)	Rear pillar (inner) No.2		-	-	×	0.65 {0.026}
		End plate		-	-	×	0.70 {0.028}
38	D-pillar reinforcement	Upper		-	×	-	1.20 {0.0472}
		Lower		-	-	×	0.65 {0.026}
39	Rear pillar (outer)			-	-	×	0.70 {0.028}
40	Corner plate			-	-	×	0.70 {0.028}
41	Cowl side reinforcement (rear) component	Cowl side reinforcement (rear)		-	×	×	1.60 {0.0630}
		Front fender bracket		-	-	×	1.40 {0.0551}
42	Front fender set bracket			-	×	-	1.00 {0.0394}
43	Side frame panel (outer)			-	-	×	0.70 {0.028}
44	Rear fender panel (lower)			-	-	×	0.70 {0.028}
45	Front door panel (outer)			-	×	×	0.65 {0.026}
46	Rear door panel (outer)			-	×	×	0.65 {0.026}
47	Liftgate panel (outer)	Upper		-	-	×	0.60 {0.024}
		Lower		-	-	×	0.60 {0.024}
48	Dash panel (lower) component	Dash panel (lower)		-	×	×	1.20 {0.0472}
		Front frame (rear) reinforcement		×	-	×	1.20 {0.0472}
		Dash lower panel (center)		-	×	×	1.20 {0.0472}
		Dash side reinforcement		×	-	-	1.00 {0.0394}
		Tunnel junction		-	-	×	0.90 {0.035}
		Front mudguard bracket		-	×	×	1.20 {0.0472}
49	Dash and cowl component	Dash panel (upper)		-	-	×	0.65 {0.026}
		Step panel reinforcement		-	-	-	0.50 {0.020}
		Cowl gusset		-	-	-	0.70 {0.028}
		A/C bracket		-	-	-	1.20 {0.0472}
		Cowl bracket		-	-	×	0.50 {0.020}
		End plate (L.H.D. only)		-	-	×	1.40 {0.0551}
50	Wiper bracket			-	×	×	1.40 {0.0551}
51	Cowl upper plate			-	×	×	1.40 {0.0551}
52	Front fender bracket			-	-	×	1.80 {0.0709}
53	Roof panel (without sunroof)			-	-	-	0.75 {0.030}
54	Front header			-	×	-	0.65 {0.026}
55	Roof reinforcement No.1 (without sunroof)			-	-	-	0.50 {0.020}
56	Roof reinforcement No.2 (without sunroof)			×	-	-	1.00 {0.0394}
57	Roof reinforcement No.3 (without sunroof)			-	-	-	0.50 {0.020}
58	Roof reinforcement No.4			-	-	-	0.50 {0.020}
59	Roof reinforcement No.5			-	-	-	0.50 {0.020}
60	Rear header component	Rear header		-	-	×	0.60 {0.024}
		Rear header (upper)		-	-	-	0.65 {0.026}
		Hinge reinforcement		×	-	-	1.40 {0.0551}
61	Roof panel component (with sunroof)	Roof panel		-	-	-	0.75 {0.030}
		Fixing plate		-	-	-	1.40 {0.0551}
		Fixing reinforcement		×	-	-	2.30 {0.0906}
		Roof reinforcement		×	-	-	2.30 {0.0906}
62	Roof reinforcement No.2 component (with sunroof)	Roof reinforcement No.2		-	-	-	0.50 {0.020}
		Sunroof set bracket		-	-	-	1.00 {0.0394}
63	Seat bracket component	Seat bracket		×	-	-	1.60 {0.0630}
		Crossmember No.2.5		×	-	-	1.20 {0.0472}
64	Control unit bracket			×	-	×	0.70 {0.028}
65	Crossmember No.2			×	-	-	1.00 {0.0394}
66	Floor reinforcement	Front		×	-	-	1.20 {0.0472}
		Rear		-	×	-	1.00 {0.0394}
67	Front floor side panel			-	-	×	0.60 {0.024}
68	Tunnel reinforcement component	Tunnel reinforcement		×	-	×	0.90 {0.035}
		Dashboard bracket		-	×	-	0.90 {0.035}
69	Front B frame	Front		×	-	×	1.40 {0.0551}
		Rear		×	-	×	1.00 {0.0394}
70	Side sill (inner) component	Side sill (inner)		×	-	×	1.40 {0.0551}
		Side sill reinforcement (front)		×	-	×	1.60 {0.0630}
71	Crossmember No.3 (upper) component	Crossmember No.3 (upper)		×	-	×	1.00 {0.0394}
		Crossmember No.3 reinforcement (side)		×	-	-	1.60 {0.0630}
		Tank bracket		-	×	×	1.80 {0.0709}
		Crossmember junction No.1 (rear)		-	×	×	0.80 {0.031}
		Crossmember No.3 reinforcement (lower)		-	-	×	0.60 {0.024}
		Stopper bracket (LH)		-	×	-	0.70 {0.028}
		Stopper bracket (RH)		×	-	×	0.65 {0.026}
		Crossmember No.3 reinforcement (upper)		×	-	-	1.40 {0.0551}
72	Crossmember No.3 (lower) component	Crossmember No.3 (lower)		-	-	×	0.60 {0.024}
		Crossmember No.3 (front)		-	×	-	1.20 {0.0472}
73	Center floor panel			-	-	×	0.60 {0.024}
74	Rear floor front reinforcement component	Brace bracket		-	-	-	2.00 {0.0787}
		Rear floor reinforcement		-	-	-	3.20 {0.126}
		Rear floor front reinforcement		-	×	-	0.90 {0.035}
75	Trunk floor panel component	Trunk floor panel		-	-	×	0.60 {0.024}
		Spare wheel bracket		-	-	-	1.00 {0.0394}
76	Urea tank bracket (front)			-	-	×	1.00 {0.0394}
77	Insulator bracket			-	-	×	1.00 {0.0394}
78	Urea tank bracket (rear)			-	-	×	1.80 {0.0709}
79	Anchor reinforcement component	Anchor reinforcement		-	×	×	1.20 {0.0472}
		Anchor reinforcement (lower)		-	-	×	2.00 {0.0787}
80	Crossmember No.4 (front)			-	×	×	1.00 {0.0394}
81	Crossmember No.4 (rear) component	Crossmemer No.4 (rear)		-	-	×	1.20 {0.0472}
		Urea tank bracket		-	-	×	1.80 {0.0709}
		Silencer bracket		-	-	×	1.80 {0.0709}
82	Rear side frame component (inner)	Rear frame reinforcement		×	-	×	0.90 {0.035}
		Seat back reinforcement		×	-	-	1.40 {0.0551}
83	Rear side frame component (outer)	Rear side sill (inner)		×	-	×	1.80 {0.0709}
		Rear side frame (front)		×	-	×	1.80 {0.0709}
		Rear side frame (center)		×	-	×	1.80 {0.0709}
		Torque box C		-	-	×	1.60 {0.0630}
		Rear frame (front)		-	×	×	2.30 {0.0906}
84	Rear side frame (rear)			×	-	×	1.60 {0.0630}
85	Rear bumper bracket			×	-	×	2.00 {0.0787}
86	Brace reinforcement			-	-	-	1.60 {0.0630}
87	Floor side panel No.1 component	Floor side panel No.1 (front)		×	-	×	1.40 {0.0551}
		Floor side panel No.1 (rear)		-	×	-	2.00 {0.0787}
		Rear floor cover		×	-	×	1.60 {0.0630}
88	Floor side panel No.2			-	-	×	0.70 {0.028}
89	Rear end panel component	Rear end panel		-	-	×	1.00 {0.0394}
		Rear end member		-	-	-	0.70 {0.028}
		Rear fender gusset		-	-	×	0.65 {0.026}
		Light bracket		-	-	×	0.70 {0.028}
		Corner junction		-	-	-	1.20 {0.0472}
90	Rear bumper reinforcement (lower)			-	-	×	1.00 {0.0394}
91	Rear bumper reinforcement (center)			-	-	×	1.00 {0.0394}

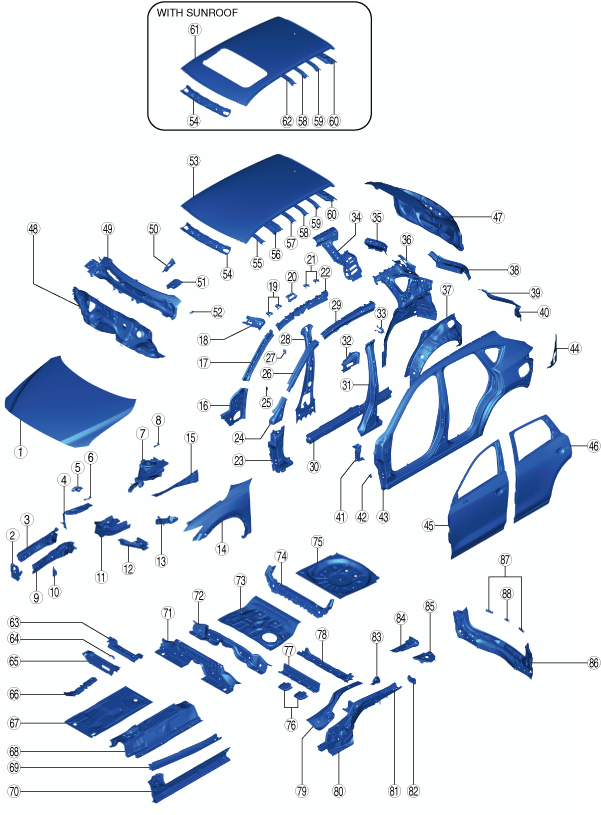

Except SKYACTIV-D 2.2 (European (L.H.D. U.K.) specs.)

ac5wzb00000345

No.	Part name			Ultra high-tension steel	High-tension steel	Rust proof steel	Thickness (mm) {in}
1	Bonnet (outer panel)			-	×	×	0.65 {0.026}
2	Bumper bracket component	Bumper bracket		×	-	×	2.60 {0.102}
		Suspension mounting reinforcement		-	×	×	2.90 {0.114}
		Outer frame reinforcement		-	×	×	2.00 {0.0787}
3	Front side frame (inner)	Front		-	×	×	1.40 {0.0551}
		Rear		×	-	×	1.60 {0.0630}
4	Shroud side member component	Apron reinforcement (lower)		-	×	×	0.80 {0.031}
		Shroud side panel		-	×	×	0.90 {0.035}
		Side stay		-	-	×	1.20 {0.0472}
		Apron reinforcement side stay (LH)		-	-	×	1.20 {0.0472}
		Shroud side member (RH)		-	-	×	0.70 {0.028}
5	Shroud upper reinforcement			-	×	×	0.80 {0.031}
6	Front wheel apron			-	-	×	0.80 {0.031}
7	Wheel apron panel component	Apron panel (front)		-	-	×	1.00 {0.0394}
		Apron reinforcement No.3		×	-	×	1.20 {0.0472}
		Apron reinforcement (upper)		-	-	×	1.00 {0.0394}
		Suspension housing (upper)		-	×	×	2.30 {0.0906}
		Suspension housing (lower)		-	-	×	1.20 {0.0472}
		Cowl side reinforcement		-	×	×	1.00 {0.0394}
		Wheel apron reinforcement (rear)		-	×	×	1.20 {0.0472}
		Apron reinforcement No.2		-	-	×	1.40 {0.0551}
		Apron reinforcement gusset		-	-	×	2.00 {0.0787}
8	Front fender junction			-	-	×	0.80 {0.031}
9	Front side frame (outer)	Front		-	×	×	1.40 {0.0551}
		Rear		×	-	×	1.60 {0.0630}
10	Light bracket			-	-	×	1.60 {0.0630}
11	Front frame (rear) component	Front frame (rear)		×	-	×	2.00 {0.0787}
		Side member		-	-	×	1.60 {0.0630}
		Lower arm bracket		-	-	×	1.60 {0.0630}
		Frame gusset		-	-	-	1.80 {0.0709}
12	Torque box			-	×	×	1.40 {0.0551}
13	Front fender stay component	Front fender stay		-	-	×	1.60 {0.0630}
		Bumper bracket		-	-	×	1.20 {0.0472}
		Front fender bracket		-	-	×	1.60 {0.0630}
14	Front fender panel			-	-	×	0.70 {0.028}
15	Cowl side reinforcement (front) component	Cowl side reinforcement (front)		×	-	×	1.40 {0.0551}
		Light bracket (rear)		-	×	×	0.80 {0.031}
16	Hinge pillar (inner)			×	-	×	1.20 {0.0472}
17	Front pillar (inner)			×	-	-	1.20 {0.0472}
18	Front pillar upper reinforcement			-	×	-	0.70 {0.028}
19	Nut plate (front)			-	-	-	1.20 {0.0472}
20	Roof corner gusset			-	×	-	2.00 {0.0787}
21	Nut plate (rear)			-	-	-	1.20 {0.0472}
22	Roof rail (inner) (front)			×	-	-	1.60 {0.0630}
23	Hinge reinforcement component	Hinge reinforcement		×	-	-	1.60 {0.0630}
		Hinge gusset (lower)		×	-	-	2.30 {0.0906}
		Hinge gusset		×	-	-	1.40 {0.0551}
24	Front pillar reinforcement (lower)			×	-	-	1.60 {0.0630}
25	Reinforcement checker			-	-	-	1.20 {0.0472}
26	Front pillar reinforcement (upper)			×	-	-	1.80 {0.0709}
27	Nut plate (door lock striker)			-	-	-	2.30 {0.0906}
28	Center pillar (inner)			-	×	×	1.60 {0.0630}
29	Roof rail reinforcement			×	-	-	1.60 {0.0630}
30	Side sill reinforcement			×	-	×	1.40 {0.0551}
31	Center pillar reinforcement	Inner		×	-	-	2.30 {0.0906}
		Outer	Upper	×	-	-	2.00 {0.0787}
			Lower	×	-	-	2.00 {0.0787}
32	Side sill reinforcement rear			×	-	×	1.80 {0.0709}
33	Quarter panel reinforcement			×	-	-	1.60 {0.0630}
34	Suspension housing reinforcement component	Suspension housing gusset		-	-	-	1.60 {0.0630}
		Suspension housing reinforcement		-	-	-	0.65 {0.026}
		C-pillar reinforcement No.1		×	-	-	1.20 {0.0472}
35	Rear side panel			-	-	×	0.70 {0.028}
36	Rear pillar (inner) component (upper)	Roof rail (inner) (rear)		-	-	×	0.70 {0.028}
		Rear pillar (inner) No.1		-	-	×	0.70 {0.028}
		C-pillar reinforcement No.2		-	-	×	0.70 {0.028}
		Beltline reinforcement (LH)		×	-	-	1.40 {0.0551}
		Corner plate		-	-	-	1.80 {0.0709}
		Wheel housing (inner)		-	-	×	0.70 {0.028}
		Suspension housing gusset		-	-	-	2.00 {0.0787}
		Package gusset		-	-	-	1.80 {0.0709}
		Side brace		-	-	-	1.80 {0.0709}
		Suspension housing upper		-	×	×	2.00 {0.0787}
37	Rear pillar (inner) component (lower)	Rear pillar (inner) No.2		-	-	×	0.65 {0.026}
		End plate		-	-	×	0.70 {0.028}
38	D-pillar reinforcement	Upper		-	×	-	1.20 {0.0472}
		Lower		-	-	×	0.65 {0.026}
39	Rear pillar (outer)			-	-	×	0.70 {0.028}
40	Corner plate			-	-	×	0.70 {0.028}
41	Cowl side reinforcement (rear) component	Cowl side reinforcement (rear)		-	×	×	1.60 {0.0630}
		Front fender bracket		-	-	×	1.40 {0.0551}
42	Front fender set bracket			-	×	-	1.00 {0.0394}
43	Side frame panel (outer)			-	-	×	0.70 {0.028}
44	Rear fender panel (lower)			-	-	×	0.70 {0.028}
45	Front door panel (outer)			-	×	×	0.65 {0.026}
46	Rear door panel (outer)			-	×	×	0.65 {0.026}
47	Liftgate panel (outer)	Upper		-	-	×	0.60 {0.024}
		Lower		-	-	×	0.60 {0.024}
48	Dash panel (lower) component	Dash panel (lower)		-	×	×	1.20 {0.0472}
		Front frame (rear) reinforcement		×	-	×	1.20 {0.0472}
		Dash lower panel (center)		-	×	×	1.20 {0.0472}
		Dash side reinforcement		×	-	-	1.00 {0.0394}
		Tunnel junction		-	-	×	0.90 {0.035}
		Front mudguard bracket		-	×	×	1.20 {0.0472}
49	Dash and cowl component	Dash panel (upper)		-	-	×	0.65 {0.026}
		Step panel reinforcement		-	-	-	0.50 {0.020}
		Cowl gusset		-	-	-	0.70 {0.028}
		A/C bracket		-	-	-	1.20 {0.0472}
		Cowl bracket		-	-	×	0.50 {0.020}
50	Wiper bracket			-	×	×	1.40 {0.0551}
51	Cowl upper plate			-	×	×	1.40 {0.0551}
52	Front fender bracket			-	-	×	1.80 {0.0709}
53	Roof panel (without sunroof)			-	-	-	0.75 {0.030}
54	Front header			-	×	-	0.65 {0.026}
55	Roof reinforcement No.1 (without sunroof)			-	-	-	0.50 {0.020}
56	Roof reinforcement No.2 (without sunroof)			×	-	-	1.00 {0.0394}
57	Roof reinforcement No.3 (without sunroof)			-	-	-	0.50 {0.020}
58	Roof reinforcement No.4			-	-	-	0.50 {0.020}
59	Roof reinforcement No.5			-	-	-	0.50 {0.020}
60	Rear header component	Rear header		-	-	×	0.60 {0.024}
		Rear header (upper)		-	-	-	0.65 {0.026}
		Hinge reinforcement		×	-	-	1.40 {0.0551}
61	Roof panel component (with sunroof)	Roof panel		-	-	-	0.75 {0.030}
		Fixing plate		-	-	-	1.40 {0.0551}
		Fixing reinforcement		×	-	-	2.30 {0.0906}
		Roof reinforcement		×	-	-	2.30 {0.0906}
62	Roof reinforcement No.2 component (with sunroof)	Roof reinforcement No.2		-	-	-	0.50 {0.020}
		Sunroof set bracket		-	-	-	1.00 {0.0394}
63	Seat bracket component	Seat bracket		×	-	-	1.60 {0.0630}
		Crossmember No.2.5		×	-	-	1.20 {0.0472}
64	Control unit bracket			×	-	×	0.70 {0.028}
65	Crossmember No.2			×	-	-	1.00 {0.0394}
66	Floor reinforcement	Front		×	-	-	1.20 {0.0472}
		Rear		-	×	-	1.00 {0.0394}
67	Front floor side panel			-	-	×	0.60 {0.024}
68	Tunnel reinforcement component	Tunnel reinforcement		×	-	×	0.90 {0.035}
		Dashboard bracket		-	×	-	0.90 {0.035}
69	Front B frame	Front		×	-	×	1.40 {0.0551}
		Rear		×	-	×	1.00 {0.0394}
70	Side sill (inner) component	Side sill (inner)		×	-	×	1.40 {0.0551}
		Side sill reinforcement (front)		×	-	×	1.60 {0.0630}
71	Crossmember No.3 (upper) component	Crossmember No.3 (upper)		×	-	×	1.00 {0.0394}
		Crossmember No.3 reinforcement (side)		×	-	-	1.60 {0.0630}
		Tank bracket		-	×	×	1.80 {0.0709}
		Crossmember junction No.1 (rear)		-	×	×	0.80 {0.031}
		Crossmember No.3 reinforcement (lower)		-	-	×	0.60 {0.024}
		Stopper bracket (LH)		-	×	-	0.70 {0.028}
		Stopper bracket (RH)		×	-	×	0.65 {0.026}
		Crossmember No.3 reinforcement (upper)		×	-	-	1.40 {0.0551}
72	Crossmember No.3 (lower) component	Crossmember No.3 (lower)		-	-	×	0.60 {0.024}
		Crossmember No.3 (front)		-	×	-	1.20 {0.0472}
73	Center floor panel			-	-	×	0.60 {0.024}
74	Rear floor front reinforcement component	Brace bracket		-	-	-	2.00 {0.0787}
		Rear floor reinforcement		-	-	-	3.20 {0.126}
		Rear floor front reinforcement		-	×	-	0.90 {0.035}
75	Trunk floor panel component	Trunk floor panel		-	-	×	0.60 {0.024}
		Spare wheel bracket		-	-	-	1.00 {0.0394}
76	Anchor reinforcement component	Anchor reinforcement		-	×	×	1.20 {0.0472}
		Anchor reinforcement (lower)		-	-	×	2.00 {0.0787}
77	Crossmember No.4 (front)			-	×	×	1.00 {0.0394}
78	Crossmember No.4 (rear) component	Center		-	-	×	0.70 {0.028}
		Side		-	-	×	1.20 {0.0472}
79	Rear side frame component (inner)	Rear frame reinforcement		×	-	×	0.90 {0.035}
		Seat back reinforcement		×	-	-	1.40 {0.0551}
80	Rear side frame component (outer)	Rear side sill (inner)		×	-	×	1.80 {0.0709}
		Rear side frame (front)		×	-	×	1.80 {0.0709}
		Rear side frame (center)		×	-	×	1.80 {0.0709}
		Torque box C		-	-	×	1.60 {0.0630}
		Rear frame (front)		-	×	×	2.30 {0.0906}
81	Rear side frame (rear)			×	-	×	1.60 {0.0630}
82	Rear bumper bracket			×	-	×	2.00 {0.0787}
83	Brace reinforcement			-	-	-	1.60 {0.0630}
84	Floor side panel No.1 component	Floor side panel No.1 (front)		×	-	×	1.40 {0.0551}
		Floor side panel No.1 (rear)		-	×	-	2.00 {0.0787}
		Rear floor cover		×	-	×	1.60 {0.0630}
85	Floor side panel No.2			-	-	×	0.70 {0.028}
86	Rear end panel component	Rear end panel		-	-	×	1.00 {0.0394}
		Rear end member		-	-	-	0.70 {0.028}
		Rear fender gusset		-	-	×	0.65 {0.026}
		Light bracket		-	-	×	0.70 {0.028}
		Corner junction		-	-	-	1.20 {0.0472}
87	Rear bumper reinforcement (lower)			-	-	×	1.00 {0.0394}
88	Rear bumper reinforcement (center)			-	-	×	1.00 {0.0394}
