ULTRA HIGH-TENSION STEEL [CONSTRUCTION]

• Ultra high-tensile steel plates have enhanced tensile strength compared to previous high-tensile steel plates.

• Because the strength is maintained even though the plates are thin-walled, the ultra high-tensile steel plates are used for the frames and the main frame parts which form the cabin, reducing the weight of the vehicle.

• Enhanced shock absorption has improved the safety.

• Because the ultra high-tensile steel is hard and it may be difficult to reform, when extracting the damaged part using a frame repair machine, perform the work verifying that other parts are not affected.

• When drilling welded parts, use a well-ground drill bit.

• After welding, inspect the weld strength. If adhesion is poor, perform arc welding (plug welding).

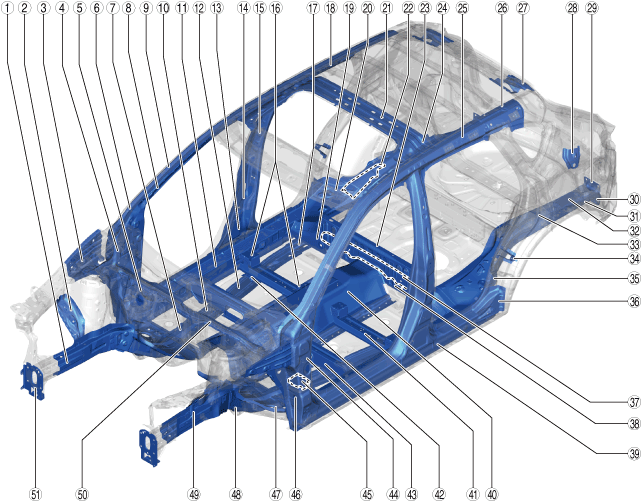

No.	Part name	Strength (MPa {kgf/cm², psi})
1	Front side frame (inner) (rear)	590 {6016, 85572}
2	Apron reinforcement No.3	590 {6016, 85572}
3	Cowl side reinforcement (front)	590 {6016, 85572}
4	Hinge pillar (inner)	590 {6016, 85572}
5	Side sill reinforcement (front)	590 {6016, 85572}
6	Front pillar reinforcement (lower)	590 {6016, 85572}
7	Floor reinforcement (front)	780 {7954, 113130}
8	Front pillar (inner)	1180 {12032, 171145}
9	Front pillar reinforcement (upper)	780 {7954, 113130}
10	Front B frame (front)	590 {6016, 85572}
11	Side sill (inner)	980 {9993, 142137}
12	Front B frame (rear)	590 {6016, 85572}
13	Center pillar reinforcement (outer) (lower)	590 {6016, 85572}
14	Center pillar reinforcement (outer) (upper)	980 {9993, 142137}
15	Center pillar reinforcement (Inner)	980 {9993, 142137}
16	Seat bracket	590 {6016, 85572}
17	Rear side frame (front)	590 {6016, 85572}
18	Roof rail (inner) (front)	980 {9993, 142137}
19	Crossmember No.3 reinforcement (side)	590 {6016, 85572}
20	Rear frame reinforcement	590 {6016, 85572}
21	Roof reinforcement No.2	780 {7954, 113130}
22	Seat back reinforcement	590 {6016, 85572}
23	Stopper bracket (RH)	590 {6016, 85572}
24	Roof rail reinforcement	780 {7954, 113130}
25	C-pillar reinforcement No.1	780 {7954, 113130}
26	Hinge reinforcement	590 {6016, 85572}
27	Beltline reinforcement (LH)	590 {6016, 85572}
28	Rear floor cover	780 {7954, 113130}
29	Rear bumper bracket	590 {6016, 85572}
30	Rear side frame (rear)	590 {6016, 85572}
31	Floor side panel No.1 (front)	590 {6016, 85572}
32	Rear side frame (center)	590 {6016, 85572}
33	Quarter panel reinforcement	590 {6016, 85572}
34	Rear side sill (inner)	590 {6016, 85572}
35	Side sill reinforcement rear	590 {6016, 85572}
36	Crossmember No.3 reinforcement (upper)	590 {6016, 85572}
37	Crossmember No.3 (upper)	590 {6016, 85572}
38	Side sill reinforcement	980 {9993, 142137}
39	Tunnel reinforcement	590 {6016, 85572}
40	Crossmember No.2.5	780 {7954, 113130}
41	Control unit bracket	590 {6016, 85572}
42	Crossmember No.2	590 {6016, 85572}
43	Hinge reinforcement	590 {6016, 85572}
44	Hinge gusset	590 {6016, 85572}
45	Hinge gusset (lower)	590 {6016, 85572}
46	Front frame (rear) reinforcement	590 {6016, 85572}
47	Front frame (rear)	590 {6016, 85572}
48	Front side frame (outer) (rear)	590 {6016, 85572}
49	Dash side reinforcement	590 {6016, 85572}
50	Bumper bracket	590 {6016, 85572}

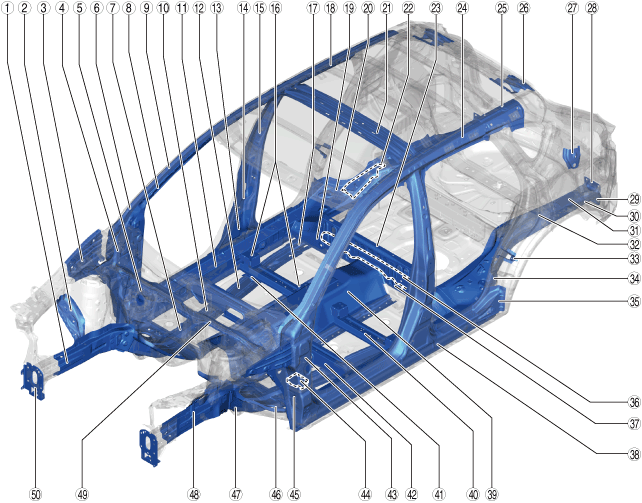

No.	Part name	Strength (MPa {kgf/cm², psi})
1	Front side frame (inner) (rear)	590 {6016, 85572}
2	Apron reinforcement No.3	590 {6016, 85572}
3	Cowl side reinforcement (front)	590 {6016, 85572}
4	Hinge pillar (inner)	590 {6016, 85572}
5	Side sill reinforcement (front)	590 {6016, 85572}
6	Front pillar reinforcement (lower)	590 {6016, 85572}
7	Floor reinforcement (front)	780 {7954, 113130}
8	Front pillar (inner)	1180 {12032, 171145}
9	Front pillar reinforcement (upper)	780 {7954, 113130}
10	Front B frame (front)	590 {6016, 85572}
11	Side sill (inner)	980 {9993, 142137}
12	Front B frame (rear)	590 {6016, 85572}
13	Center pillar reinforcement (outer) (lower)	590 {6016, 85572}
14	Center pillar reinforcement (outer) (upper)	980 {9993, 142137}
15	Center pillar reinforcement (Inner)	980 {9993, 142137}
16	Seat bracket	590 {6016, 85572}
17	Rear side frame (front)	590 {6016, 85572}
18	Roof rail (inner) (front)	980 {9993, 142137}
19	Crossmember No.3 reinforcement (side)	590 {6016, 85572}
20	Rear frame reinforcement	590 {6016, 85572}
21	Roof reinforcement	590 {6016, 85572}
22	Seat back reinforcement	590 {6016, 85572}
23	Stopper bracket (RH)	590 {6016, 85572}
24	Fixing reinforcement	590 {6016, 85572}
25	Roof rail reinforcement	780 {7954, 113130}
26	C-pillar reinforcement No.1	780 {7954, 113130}
27	Hinge reinforcement	590 {6016, 85572}
28	Beltline reinforcement (LH)	590 {6016, 85572}
29	Rear floor cover	780 {7954, 113130}
30	Rear bumper bracket	590 {6016, 85572}
31	Rear side frame (rear)	590 {6016, 85572}
32	Floor side panel No.1 (front)	590 {6016, 85572}
33	Rear side frame (center)	590 {6016, 85572}
34	Quarter panel reinforcement	590 {6016, 85572}
35	Rear side sill (inner)	590 {6016, 85572}
36	Side sill reinforcement rear	590 {6016, 85572}
37	Crossmember No.3 reinforcement (upper)	590 {6016, 85572}
38	Crossmember No.3 (upper)	590 {6016, 85572}
39	Side sill reinforcement	980 {9993, 142137}
40	Tunnel reinforcement	590 {6016, 85572}
41	Crossmember No.2.5	780 {7954, 113130}
42	Control unit bracket	590 {6016, 85572}
43	Crossmember No.2	590 {6016, 85572}
44	Hinge reinforcement	590 {6016, 85572}
45	Hinge gusset	590 {6016, 85572}
46	Hinge gusset (lower)	590 {6016, 85572}
47	Front frame (rear) reinforcement	590 {6016, 85572}
48	Front frame (rear)	590 {6016, 85572}
49	Front side frame (outer) (rear)	590 {6016, 85572}
50	Dash side reinforcement	590 {6016, 85572}
51	Bumper bracket	590 {6016, 85572}
