FRONT SIDE FRAME REMOVAL [PANEL REPLACEMENT]

id098008605900

Symbol Mark

ac5uub00000170

Removal Procedure

1.  Drill the 12 locations indicated by (A) shown in the figure.

2.  Drill the 8 locations indicated by (B) shown in the figure.

Note

•  When drilling the 8 locations indicated by (B) shown in the figure, do not drill a hole all the way through or there could be a problem when installing the new part.

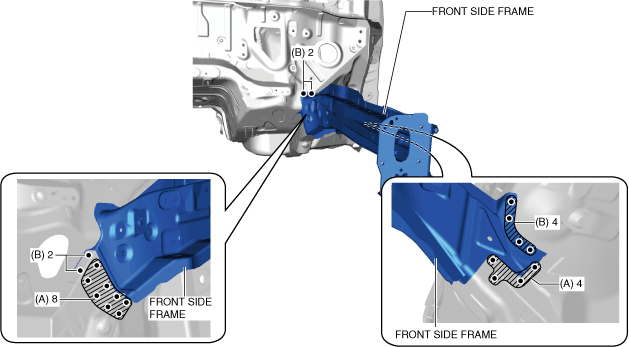

ac5uub00000342

3.  Remove the front side frame.
