FRONT SIDE FRAME INSTALLATION [PANEL REPLACEMENT]

id098008606000

Symbol Mark

ac5uub00000172

Removal Procedure

1.  Drill holes for the plug welding before installing the new parts.

2.  When installing new parts, measure and adjust the body as necessary to conform with standard dimensions.

3.  After temporarily installing new parts, make sure the related parts fit properly.

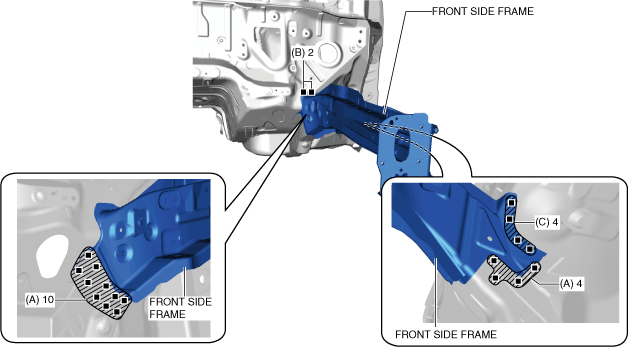

4.  Plug weld the 14 locations indicated by (A) shown in the figure.

5.  Plug weld the 2 locations indicated by (B) shown in the figure.

6.  Plug weld the 4 locations indicated by (C) from front wheel housing shown in the figure, then install the front side frame.

ac5uub00000343
