CORNER PLATE INSTALLATION [PANEL REPLACEMENT]

id098008610500

Symbol Mark

ac5uub00000252

Installation Procedure

1.  When installing new parts, measure and adjust the body as necessary to conform with standard dimensions.

2.  After temporarily installing new parts, make sure the related parts fit properly.

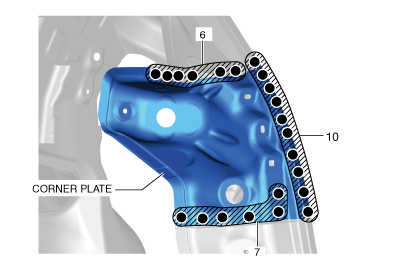

3.  Spot weld the 23 locations indicated shown in the figure then install the corner plate.
