SIDE SILL PANEL INSTALLATION [PANEL REPLACEMENT]

id098008615200

Symbol Mark

ac5uub00000283

Installation Procedure

1.  Drill holes for the plug welding before installing the new parts.

2.  When installing new parts, measure and adjust the body as necessary to conform with standard dimensions.

3.  After temporarily installing new parts, make sure the related parts fit properly.

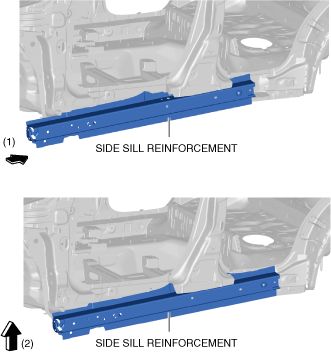

4.  Push the side sill reinforcement direction of arrow (1) shown in the figure.

5.  Pull up the side sill reinforcement direction of arrow (2) shown in the figure.

ac5uub00000410

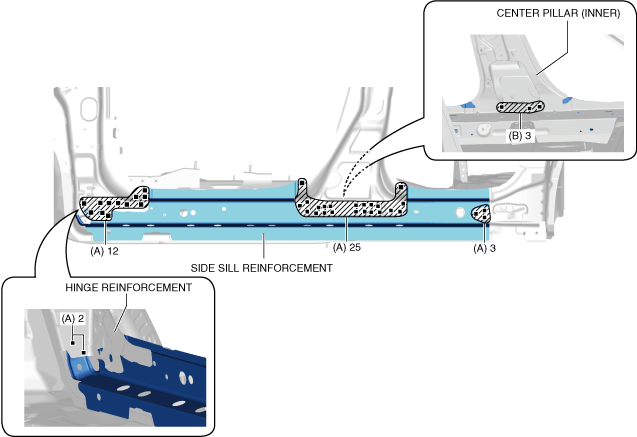

6.  Plug weld the 42 locations indicated by (A) shown in the figure.

7.  Plug weld the 3 locations indicated by (B) from the room side shown in the figure then install the side sill reinforcement.

ac5uub00000287

8.  Cut and join the 3 locations indicated by (C) shown in the figure.

9.  Plug weld the 106 locations indicated by (D) shown in the figure then install the cabin side frame (outer) (side sill (outer)).

ac5uub00000412
