FLOOR SIDE PANEL REMOVAL [PANEL REPLACEMENT]

id098008618700

Symbol Mark

ac5uub00000138

Removal Procedure

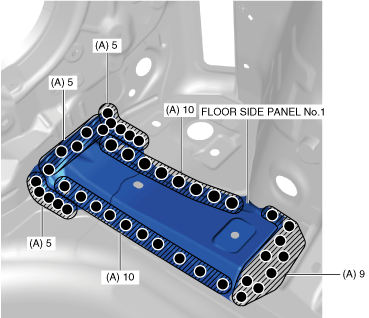

1.  Drill the 44 locations indicated by (A) shown in the figure then remove the floor side panel No.1.

Caution

•  When drilling the 44 locations indicated by (A) shown in the figure, do not drill a hole all the way through or there could be a problem when installing the new part.

ac5wzb00000552

2.  Drill the 5 locations indicated by (B) from rear wheel housing side shown in the figure.

3.  Drill the 4 locations indicated by (C) from rear end panel side shown in the figure.

ac5uub00000140

4.  Remove the floor side panel No.2.
