FRONT SIDE FRAME (PARTIAL CUTTING) REMOVAL [PANEL REPLACEMENT]

id098008742100

Symbol Mark

ac5uub00000178

Removal Procedure

LH

1.  Rough cut the location indicated by (A) shown in the figure.

2.  Drill the 6 locations indicated by (B) shown in the figure, then remove the front side frame (inner).

ac5uub00000344

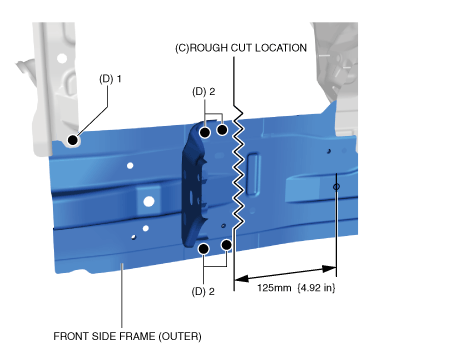

3.  Rough cut the location indicated by (C) shown in the figure.

4.  Drill the 5 locations indicated by (D) shown in the figure.

ac5uub00000345

5.  Remove the front side frame (outer).

RH

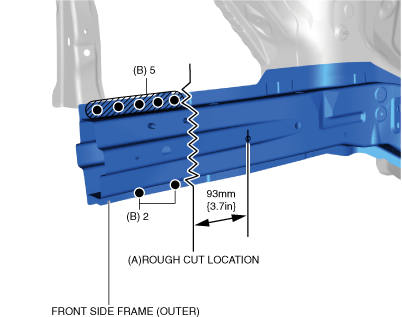

1.  Rough cut the location indicated by (A) shown in the figure.

2.  Drill the 7 locations indicated by (B) shown in the figure, then remove the front side frame (inner).

ac5uub00000295

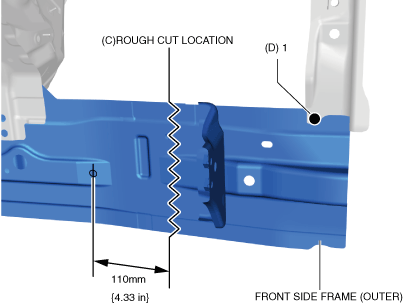

3.  Rough cut the location indicated by (C) shown in the figure.

4.  Drill the 1 location indicated by (D) shown in the figure.

ac5uub00000346

5.  Remove the front side frame (outer).
