CENTER PILLAR INSTALLATION [PANEL REPLACEMENT]

id098008744000

Symbol Mark

ac5uub00000147

Installation Procedure

1.  Drill holes for the plug welding before installing the new parts.

2.  When installing new parts, measure and adjust the body as necessary to conform with standard dimensions.

3.  After temporarily installing new parts, make sure the related parts fit properly.

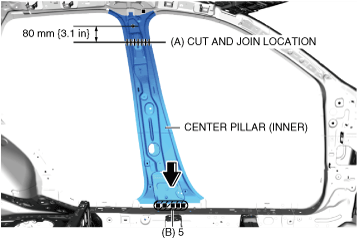

4.  Insert the end of the center pillar (inner) locations indicated by (A) shown in the figure, between the side sill (inner) and side sill reinforcement.

5.  Cut and join the location indicated by (A) shown in the figure.

6.  Plug weld the 5 locations indicated by (B) shown in the figure then install the center pillar (inner).

ac5wzb00000508

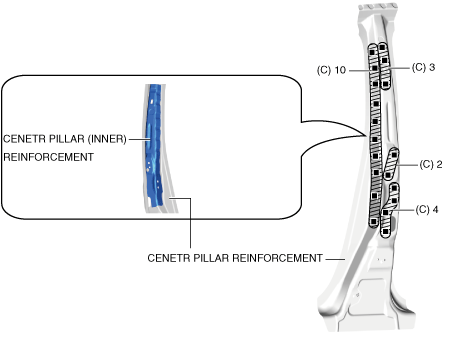

7.  Plug weld the 19 locations indicated by (C) shown in the figure then install the center pillar (inner) reinforcement to the center pillar reinforcement.

ac5wzb00000509

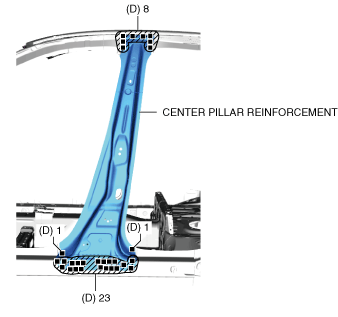

8.  Plug weld the 33 locations indicated by (D) shown in the figure then install the center pillar reinforcement.

ac5wzb00000510

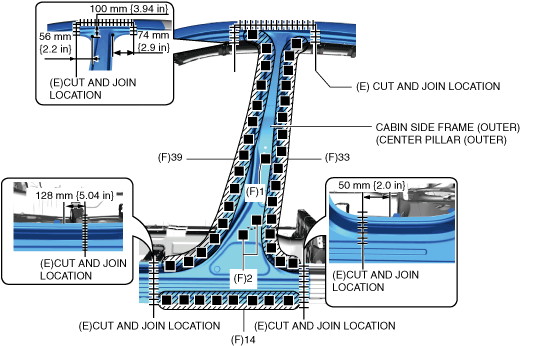

9.  Cut and join the location indicated by (E) shown in the figure.

10.  Plug weld the 89 locations indicated by (F) shown in the figure then install the cabin side frame (outer) (center pillar (outer)).

ac5wzb00000359
