ROOF PANEL REMOVAL [PANEL REPLACEMENT]

id098008744300

Symbol Marks

ac5uub00000127

Removal Procedure

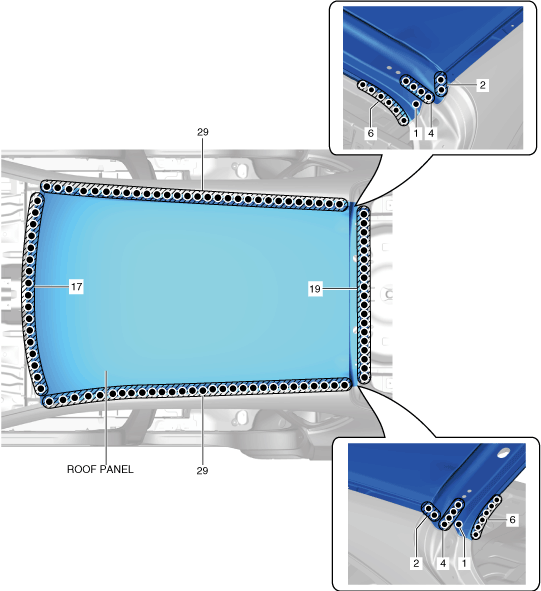

1.  Drill the 120 locations shown in the figure.

Caution

•  When drilling the 120 locations shown in the figure, do not drill a hole all the way through or there could be a problem when installing the new part.

ac5uub00000128

2.  Remove the roof panel.
