FRONT PILLAR REMOVAL [PANEL REPLACEMENT]

id098008744700

Symbol Mark

ac5uub00000232

Removal Procedure

Caution

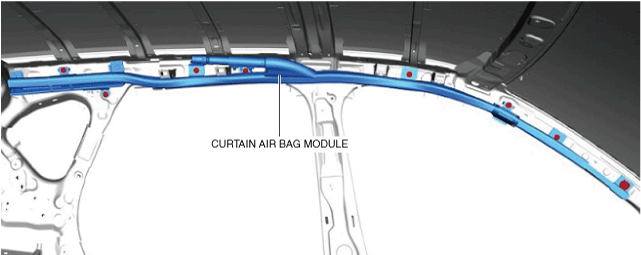

•  Remove the curtain air bag module to prevent damage before servicing.

ac5uub00000355

Caution

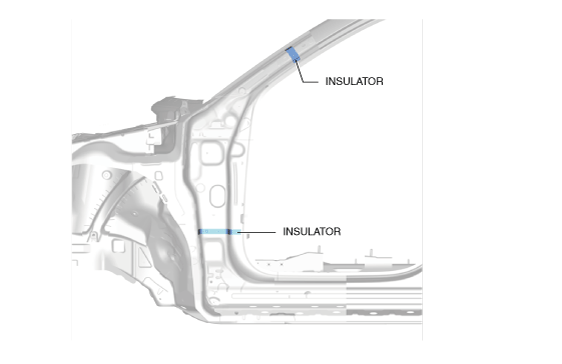

•  Avoid cutting with a blowtorch or similar tools as the insulator is flammable shown in the figure

ac5uub00000234

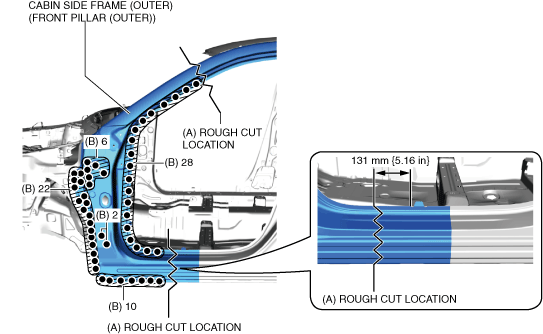

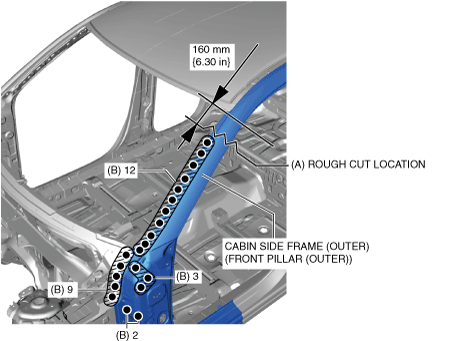

1.  Rough cut the 2 locations indicated by (A) shown in the figure.

2.  Drill the 94 locations indicated by (B) shown in the figure.

ac5uub00000357

ac5wzb00000499

3.  Remove the cabin side (outer) (front pillar (outer)).

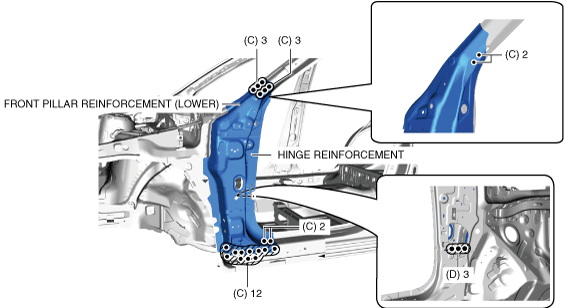

4.  Drill the 22 locations indicated by (C) shown in the figure.

5.  Drill the 3 locations indicated by (D) from room side shown in the figure.

ac5uub00000359

6.  Remove the front pillar reinforcement (lower) and hinge reinforcement as a single unit.

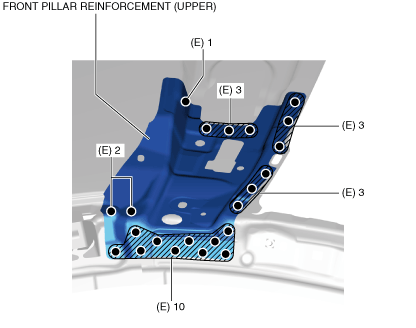

7.  Drill the 22 locations indicated by (E) from room side shown in the figure.

ac5wzb00000500

8.  Remove the front pillar reinforcement (upper).

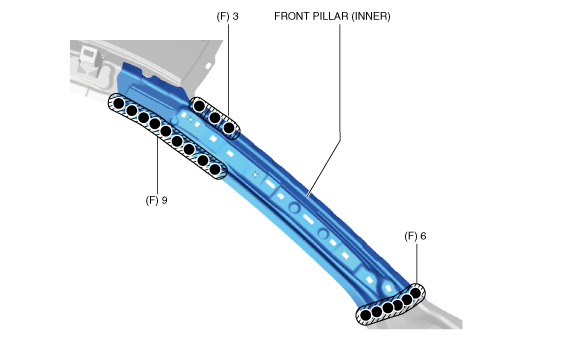

9.  Drill the 18 locations indicated by (F) shown in the figure.

ac5wzb00000501

10.  Remove the front pillar (inner).

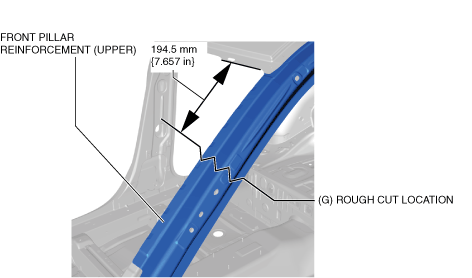

11.  Rough cut the location indicated by (G) shown in the figure.

ac5uub00000240

12.  Remove the front pillar reinforcement (upper).
