FRONT PILLAR INSTALLATION [PANEL REPLACEMENT]

id098008744800

Symbol Mark

ac5uub00000241

Installation Procedure

1.  Drill holes for the plug welding before installing the new parts.

2.  When installing new parts, measure and adjust the body as necessary to conform with standard dimensions.

3.  After temporarily installing new parts, make sure the related parts fit properly.

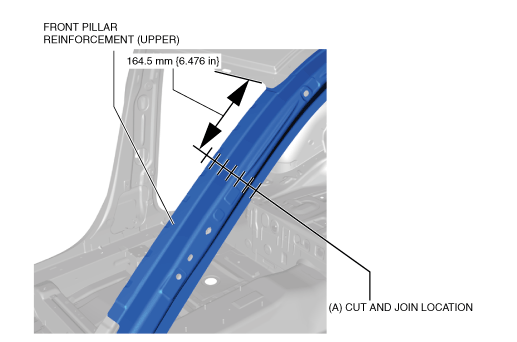

4.  Cut and join the location indicated by (A) shown in the figure then install the front pillar reinforcement (upper).

ac5wzb00000572

5.  Plug weld the 18 locations indicated by (B) shown in the figure then install the front pillar (inner).

ac5wzb00000502

6.  Plug weld the 22 locations indicated by (C) shown in the figure then install the front pillar reinforcement (upper).

ac5wzb00000503

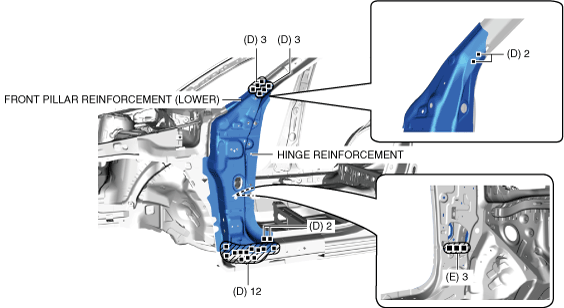

7.  Plug weld the 22 locations indicated by (D) shown in the figure.

8.  Plug weld the 3 locations indicated by (E) from room side shown in the figure then install the hinge reinforcement and front pillar reinforcement (lower).

ac5wzb00000573

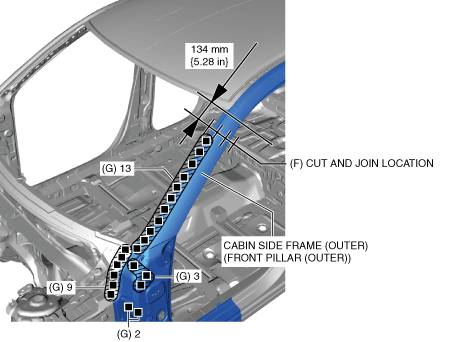

9.  Cut and join the 2 locations indicated by (F) shown in the figure.

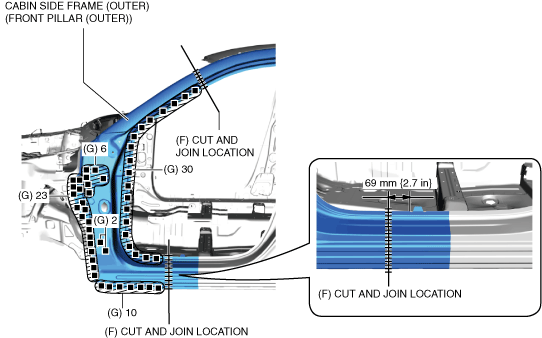

10.  Plug weld the 98 locations indicated by (G) shown in the figure then install the cabin side frame (outer) (front pillar (outer)).

ac5wzb00000574

ac5uub00000419
