REAR FENDER PANEL REMOVAL [PANEL REPLACEMENT]

id098008744900

Symbol Mark

ac5uub00000273

Removal Procedure

Caution

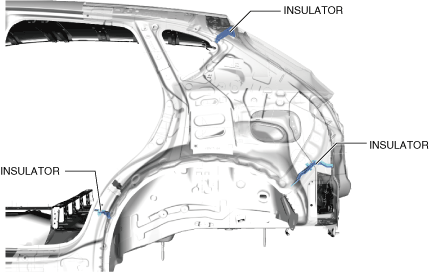

•  Avoid cutting with a blowtorch or similar tools as the insulator is flammable shown in the figure.

ac5uub00000274

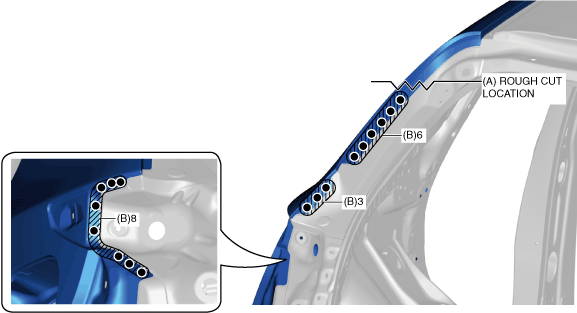

1.  Rough cut the 3 locations indicated by (A) shown in the figure.

2.  Drill the 97 locations indicated by (B) shown in the figure.

ac5wzb00000515

ac5uub00000276

3.  Remove the cabin side frame (rear fender panel).
