REAR FENDER PANEL INSTALLATION [PANEL REPLACEMENT]

id098008745000

Symbol Mark

ac5uub00000277

Installation Procedure

1.  Drill holes for the plug welding before installing the new parts.

2.  When installing new parts, measure and adjust the body as necessary to conform with standard dimensions.

3.  After temporarily installing new parts, make sure the related parts fit properly.

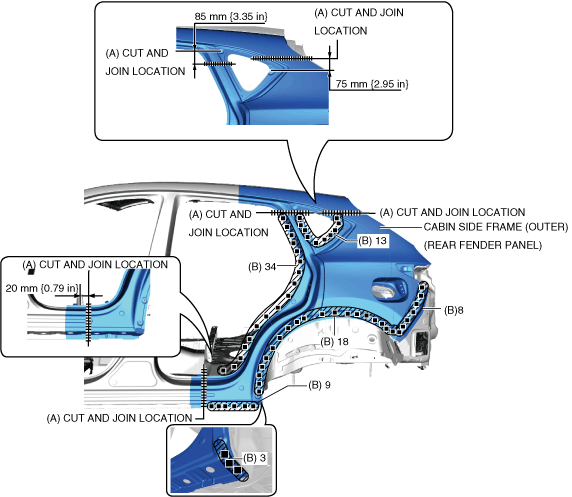

4.  Cut and join the 3 locations indicated by (A) shown in the figure.

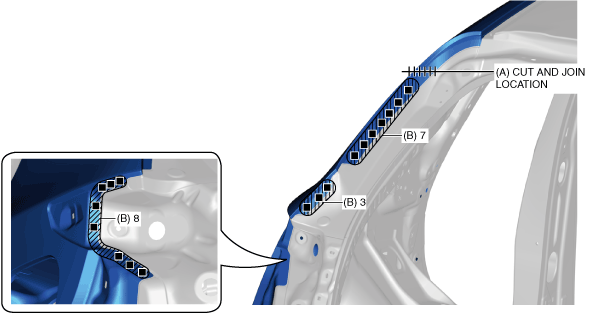

5.  Plug weld the 103 locations indicated by (B) shown in the figure then install the cabin side frame (rear fender panel).
