WHEEL APRON COMPONENT REMOVAL [PANEL REPLACEMENT]

id098008746000

Symbol Mark

ac5uub00000196

Removal Procedure

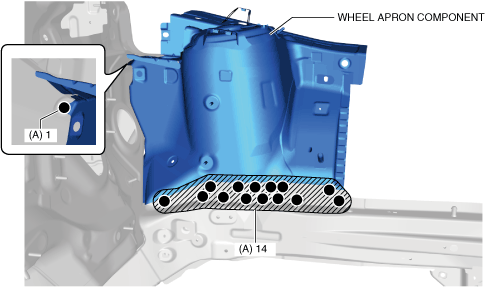

1.  Drill the 15 locations indicated by (A) from the engine room shown in the figure.

ac5uub00000334

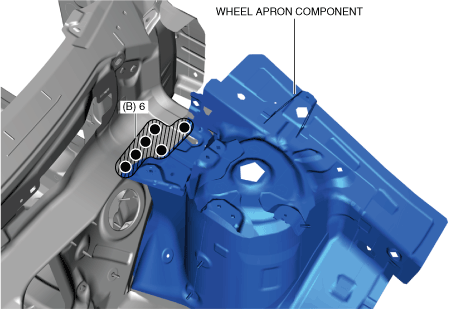

2.  Drill the 6 locations indicated by (B) shown in the figure.

Note

•  When drilling the 6 locations indicated by (B) shown in the figure, do not drill a hole all the way through or there could be a problem when installing the new part.

ac5uub00000335

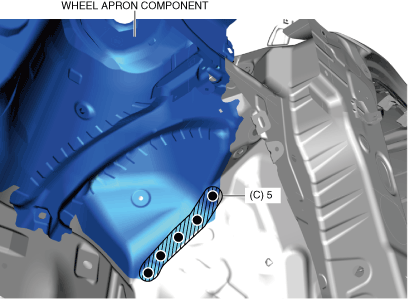

3.  Drill the 5 locations indicated by (C) shown in the figure.

ac5uub00000336

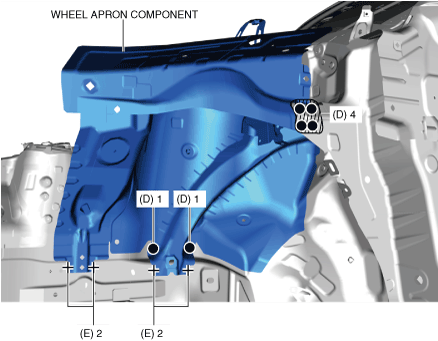

4.  Drill the 6 locations indicated by (D) shown in the figure.

5.  Grind the 4 locations indicated by (E) shown in the figure.

ac5uub00000338

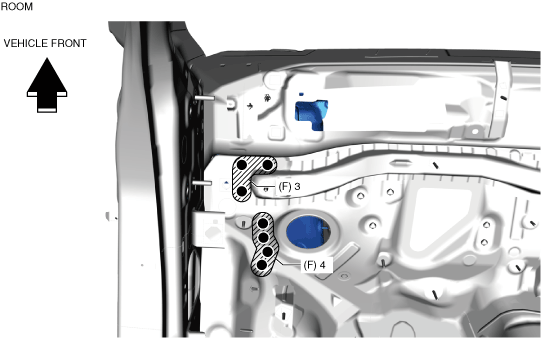

6.  Drill the 7 locations indicated by (F) from the room shown in the figure.

ac5uub00000337

7.  Remove the wheel apron component.
