WHEEL APRON COMPONENT INSTALLATION [PANEL REPLACEMENT]


id098008746100


Symbol Mark

ac5uub00000201

Installation Procedure

1.  Drill holes for the plug welding before installing the new parts.

2.  When installing new parts, measure and adjust the body as necessary to conform with standard dimensions.

3.  After temporarily installing new parts, make sure the related parts fit properly.

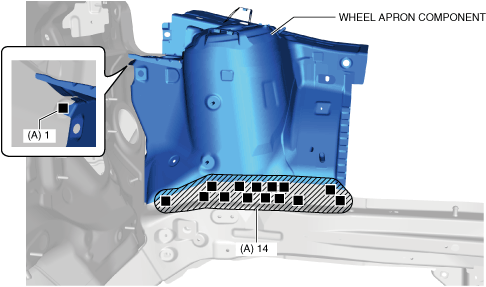

4.  Plug weld the 15 locations indicated by (A) shown in the figure.

ac5wzb00000250

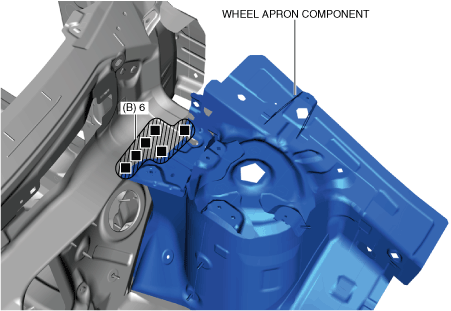

5.  Plug weld the 6 locations indicated by (B) shown in the figure.

ac5wzb00000251

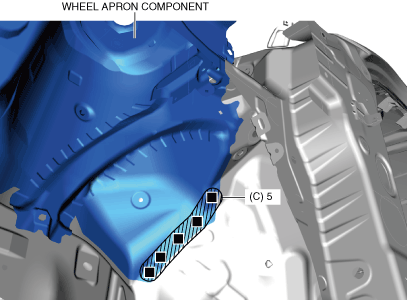

6.  Plug weld the 5 locations indicated by (C) from the wheel housing shown in the figure.

ac5wzb00000252

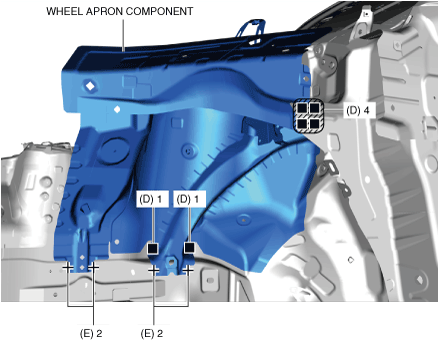

7.  Plug weld the 6 locations indicated by (D) shown in the figure.

8.  Arc weld (spot welding) the 4 location indicated by (E) shown in the figure.

ac5wzb00000253

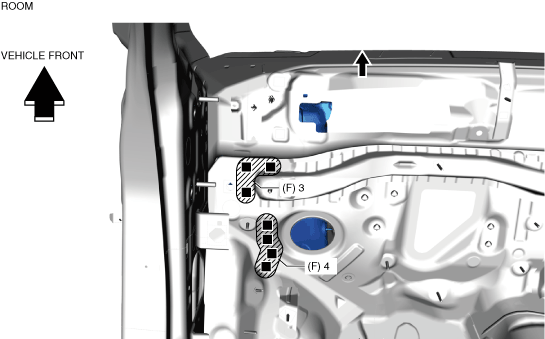

9.  Plug weld the 7 locations indicated by (F) from the inside shown in the figure, then install the wheel apron component.

ac5uub00000339
