REAR PILLAR (OUTER) REMOVAL [PANEL REPLACEMENT]

id098008747200

Symbol Mark

ac5uub00000132

Removal Procedure

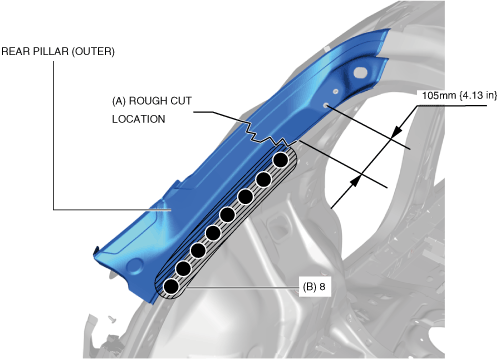

1.  Rough cut the location indicated by (A) shown in the figure.

2.  Drill the 8 location indicated by (B) shown in the figure.

ac5wzb00000522

3.  Remove the rear pillar (outer).
