REAR PILLAR (OUTER) INSTALLATION [PANEL REPLACEMENT]

id098008747300

Symbol Mark

ac5uub00000134

Installation Procedure

1.  Drill holes for the plug welding before installing the new parts.

2.  When installing new parts, measure and adjust the body as necessary to conform with standard dimensions.

3.  After temporarily installing new parts, make sure the related parts fit properly.

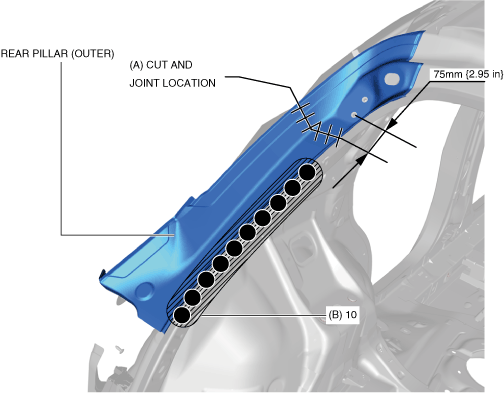

4.  Cut and joint the location indicated by (A) shown in the figure.

5.  Spot weld the 10 locations indicated by (B) shown in the figure then install the rear pillar (outer).

ac5wzb00000523
