REAR SIDE FRAME REMOVAL [PANEL REPLACEMENT]

id098008801200

Symbol Mark

ac5uub00000152

Removal Procedure

SKYACTIV-D 2.2 (European (L.H.D. U.K.) specs.)

Caution

•  When drilling the 44 locations indicated by (A) and 4 locations indicated by (C) shown in the figure, do not drill a hole all the way through or there could be a problem when installing the new part.

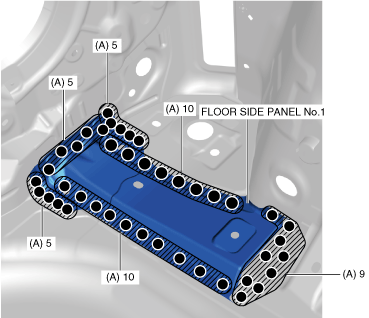

1.  Drill the 44 locations indicated by (A) shown in the figure then remove the floor side panel No.1.

ac5wzb00000524

2.  Rough cut area location indicated by (B) shown in the figure.

ac5wzb00000531

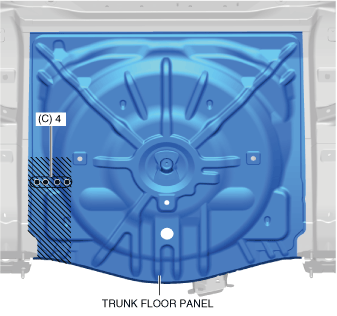

3.  Drill the 4 locations indicated by (C) shown in the figure then remove the part of trunk floor panel (shaded area).

ac5wzb00000532

4.  Drill the 8 locations indicated by (D) shown in the figure.

ac5uub00000156

5.  Remove the rear side frame.

Except SKYACTIV-D 2.2 (European (L.H.D. U.K.) specs.)

Caution

•  When drilling the 44 locations indicated by (A) and 4 locations indicated by (C) shown in the figure, do not drill a hole all the way through or there could be a problem when installing the new part.

1.  Drill the 44 locations indicated by (A) shown in the figure then remove the floor side panel No.1.

ac5wzb00000524

2.  Rough cut area location indicated by (B) shown in the figure.

ac5uub00000154

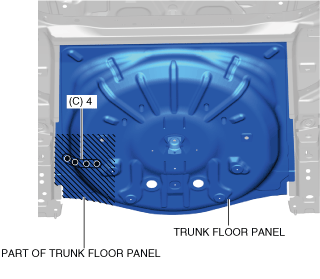

3.  Drill the 4 locations indicated by (C) shown in the figure then remove the part of trunk floor panel (shaded area).

ac5wzb00000533

4.  Drill the 8 locations indicated by (D) shown in the figure.

ac5uub00000156

5.  Remove the rear side frame.
