REAR SIDE FRAME INSTALLATION [PANEL REPLACEMENT]

id098008801300

Symbol Marks

ac5uub00000157

Installation Procedure

SKYACTIV-D 2.2 (European (L.H.D. U.K.) specs.)

1. Drill holes for the plug welding before installing the new parts.

2. When installing new parts, measure and adjust the body as necessary to conform with standard dimensions.

3. After temporarily installing new parts, make sure the related parts fit properly.

4. Plug weld the 8 locations indicated by (A) shown in the figure then install the rear side frame.

ac5uub00000158

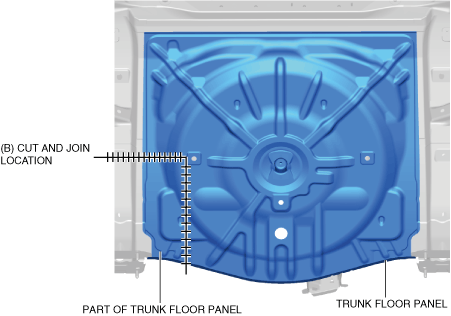

5. Cut and join the area location indicated by (B) shown in the figure then install a part of the trunk floor panel.

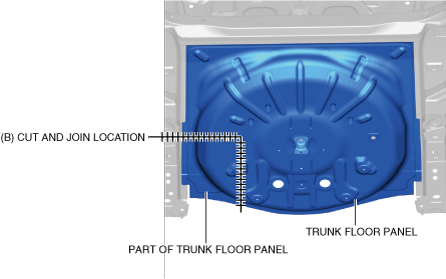

ac5wzb00000534

6. Plug weld the 4 locations indicated by (C) shown in the figure.

ac5wzb00000553

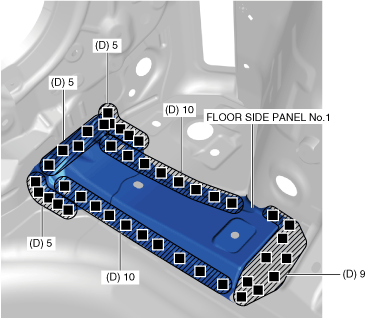

7. Plug weld the 44 locations by (D) shown in the figure then install the floor side panel No.1.

ac5wzb00000536

Except SKYACTIV-D 2.2 (European (L.H.D. U.K.) specs.)
