FRONT FENDER JUNCTION REMOVAL [PANEL REPLACEMENT]

id098008828300

Symbol Mark

ac5uub00000206

Removal Procedure

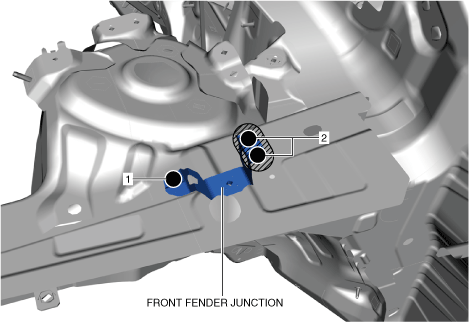

1.  Drill the 3 locations indicated shown in the figure.

ac5wzb00000382

2.  Remove the front fender junction.
