SHROUD SIDE MEMBER REMOVAL [PANEL REPLACEMENT]

id098008919000

Symbol Mark

ac5uub00000104

Removal Procedure

1.  Drill the 3 locations indicated by (A) shown in the figure.

2.  Drill the 9 locations indicated by (B) shown in the figure.

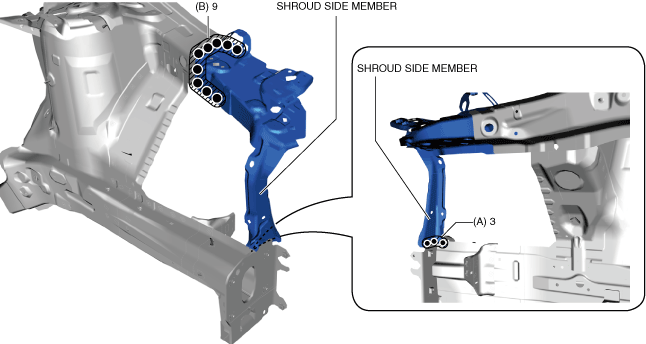

ac5uub00000105

3.  Remove the shroud side member.
