COWL UPPER PLATE REMOVAL [PANEL REPLACEMENT]

id098008957100

Symbol Mark

ac5uub00000223

Removal Procedure

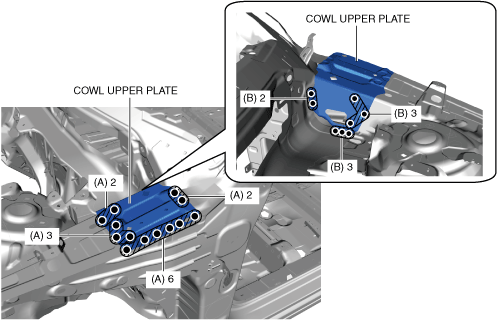

1.  Drill the 13 locations indicated by (A) shown in the figure.

2.  Drill the 8 locations indicated by (B) shown in the figure.

ac5uub00000224

3.  Remove the cowl upper plate.
