COWL UPPER PLATE INSTALLATION [PANEL REPLACEMENT]

id098008957200

Symbol Mark

ac5wzb00000343

Installation Procedure

1.  Drill holes for the plug welding before installing the new parts.

2.  When installing new parts, measure and adjust the body as necessary to conform with standard dimensions.

3.  After temporarily installing new parts, make sure the related parts fit properly.

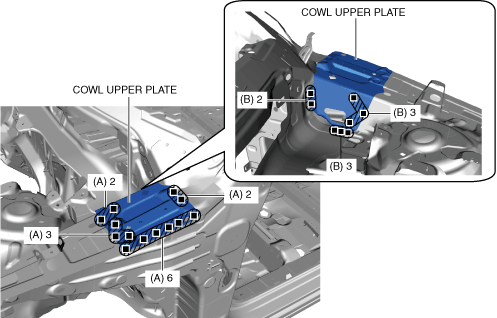

4.  Plug weld the 13 locations indicated by (A) shown in the figure.

5.  Plug weld the 8 locations indicated by (B) shown in the figure, then install the cowl upper plate.

ac5uub00000225
