WIPER BRACKET INSTALLATION [PANEL REPLACEMENT]

id098008968900

Symbol Mark

ac5uub00000286

Installation Procedure

1.  Drill holes for the plug welding before installing the new parts.

2.  When installing new parts, measure and adjust the body as necessary to conform with standard dimensions.

3.  After temporarily installing new parts, make sure the related parts fit properly.

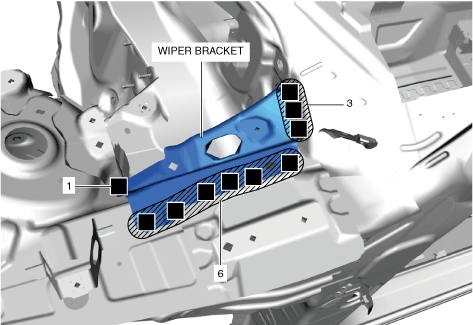

4.  Plug weld the 10 locations indicated shown in the figure then install the wiper bracket.

ac5uub00000282
