BUMPER BRACKET REMOVAL [PANEL REPLACEMENT]


id098008999500

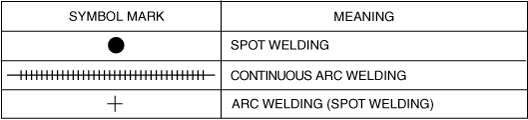

Symbol Mark

ac5uub00000079

Removal Procedure

1.  Drill the 2 locations indicated by (A) shown in the figure.

2.  Grind the 8 locations indicated by (B) shown in the figure.

Caution
•  When grinding 8 locations indicated by (B) shown in the figure and the front side frame is damaged, there is a possibility that attachment of a bracket may become difficulty. When grinding 8 locations indicated by (B) shown in the figure, the amount removed will affect the quality of the installation.

3.  Drill the 4 locations indicated by (C) shown in the figure.

4.  Drill the 3 locations indicated by (D) shown in the figure.

5.  Grind the 1 location indicated by (E) shown in the figure.

6.  Drill the 4 locations indicated by (F) shown in the figure.

7.  Drill the 2 locations indicated by (G) shown in the figure.

8.  Grind the 1 location indicated by (H) shown in the figure.

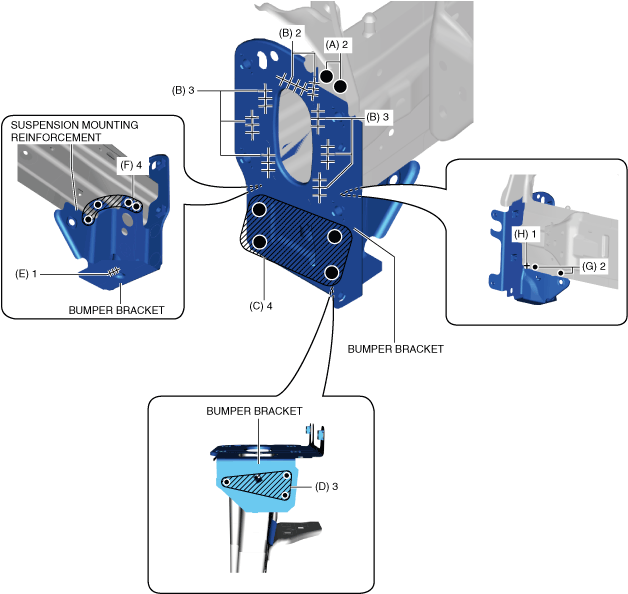

ac5uub00000328

9.  Remove the bumper bracket.
