BUMPER BRACKET INSTALLATION [PANEL REPLACEMENT]

id098008999600

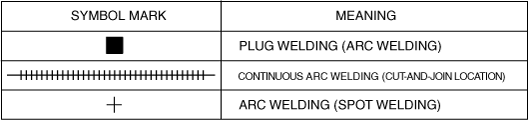

Symbol Mark

ac5uub00000081

Installation Procedure

1.  Drill holes for the plug welding before installing the new parts.

2.  When installing new parts, measure and adjust the body as necessary to conform with standard dimensions.

3.  After temporarily installing new parts, make sure the related parts fit properly.

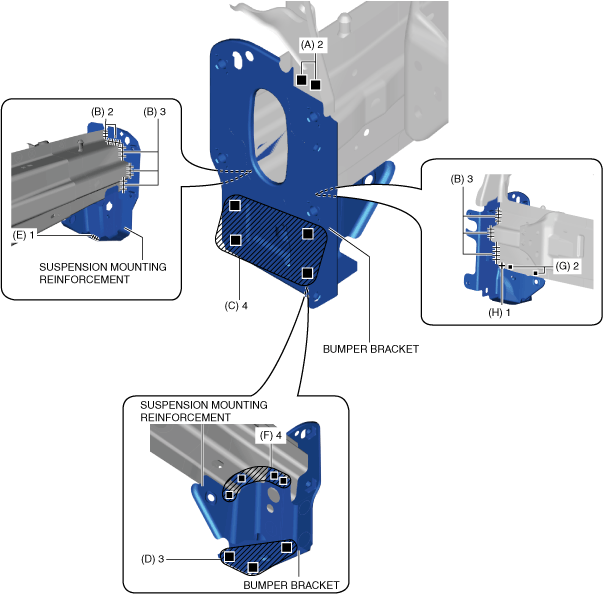

4.  Plug weld the 2 locations indicated by (A) shown in the figure.

5.  Continuous weld the 8 locations indicated by (B) shown in the figure from the front wheel housing and engine room.

Note

•  A flange part is fixed by a hand vise, and where a welded area is press-fitted, welding is performed so that a clearance does not open in the part welded.

6.  Plug weld the 4 locations indicated by (C) shown in the figure.

7.  Plug weld the 3 locations indicated by (D) shown in the figure.

8.  Continuous weld the 1 location indicated by (E) shown in the figure from the suspension mounting reinforcement.

9.  Plug weld the 4 locations indicated by (F) shown in the figure.

10.  Plug weld the 2 locations indicated by (G) shown in the figure.

11.  Arc weld (spot welding) the 1 location indicated by (H) shown in the figure, then install the bumper bracket.

ac5uub00000329
