BODY SEALING [WATER-PROOF AND RUST PREVENTIVE]

id098009739800

• Sealant is applied to the parts where the panels meet and to the hemmed parts of the door panel and bonnet panel to provide water proofing and rust proofing.

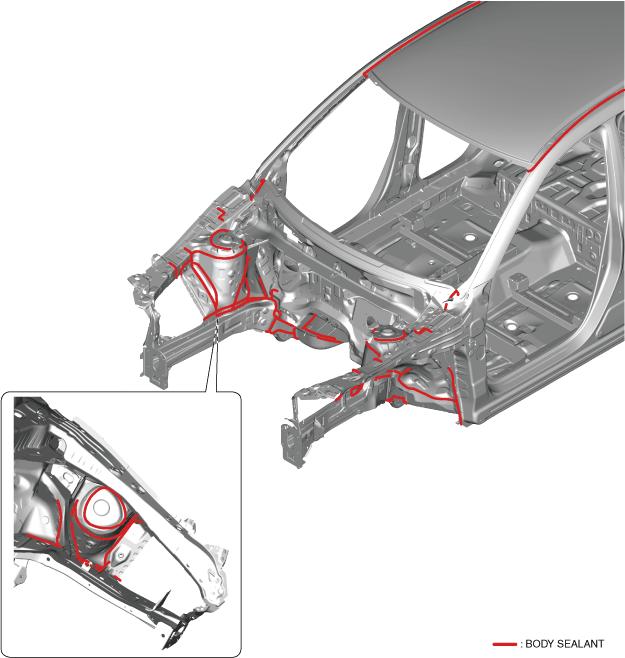

Front Body

ac5wzb00000571

Room

Front-side

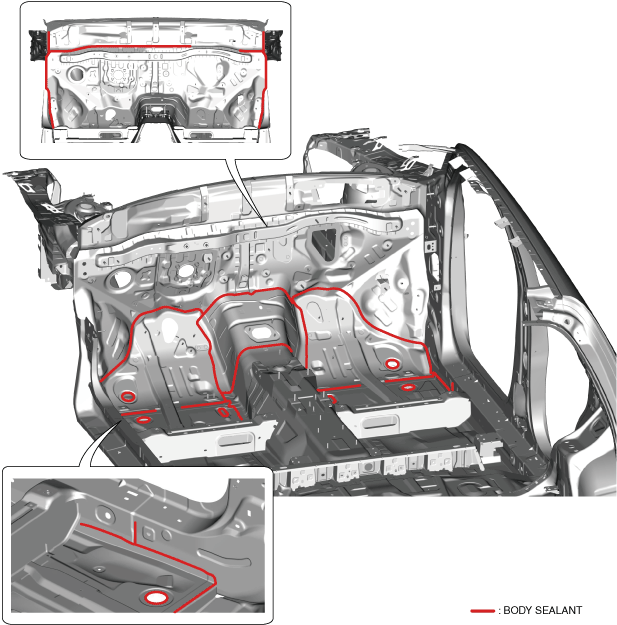

L.H.D.

ac5uub00000306

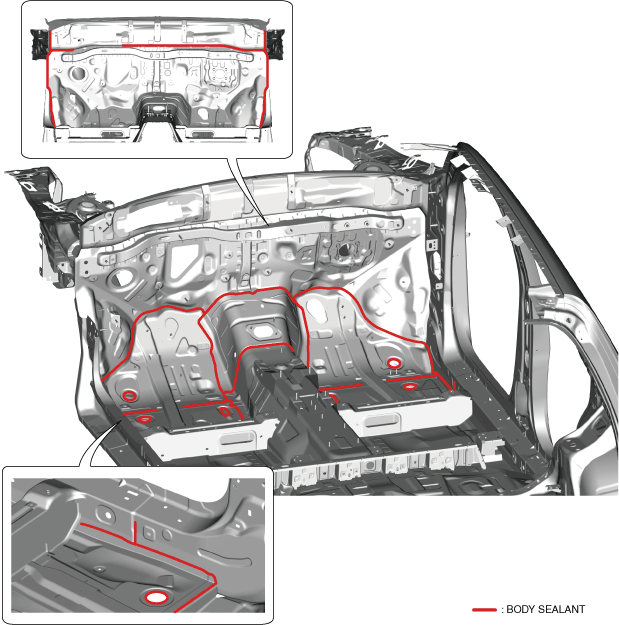

R.H.D.

ac5wzb00000346

Rear-side

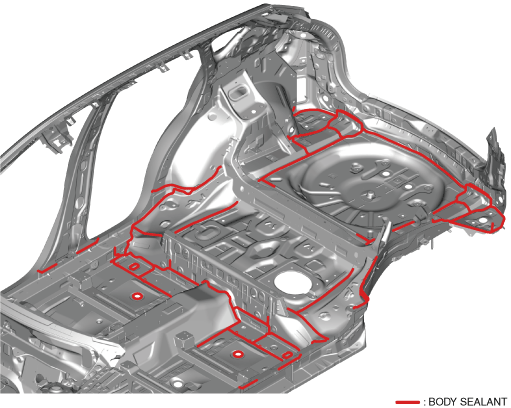

Except SKYACTIV-D 2.2 (European (L.H.D. U.K.) specs.)

ac5uub00000090

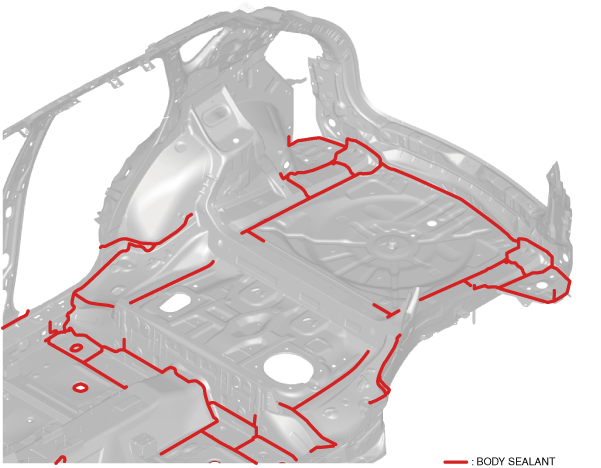

SKYACTIV-D 2.2 (European (L.H.D. U.K.) specs.)

ac5wzb00000545

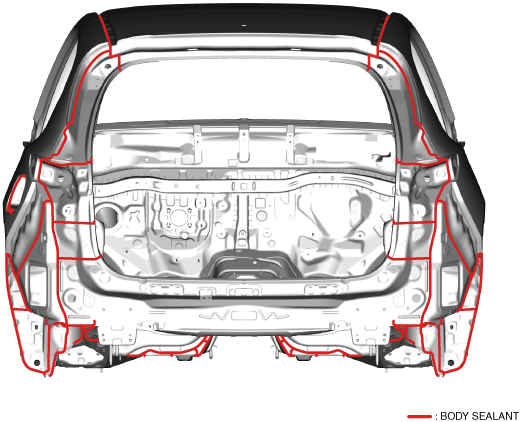

Rear Body

ac5uub00000091

Under Body

2WD

Except SKYACTIV-D 2.2 (European (L.H.D. U.K.), General (R.H.D.) (Hong Kong) specs.)

ac5wzb00000548

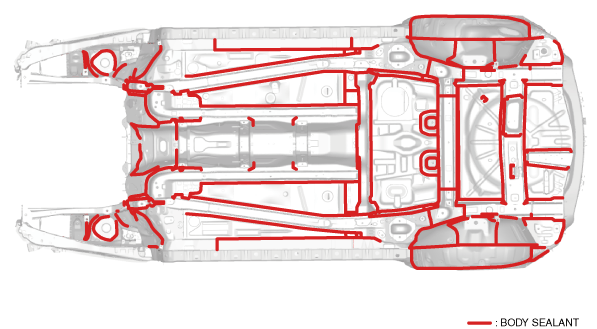

SKYACTIV-D 2.2 (European (L.H.D. U.K.) specs.)

ac5wzb00000544

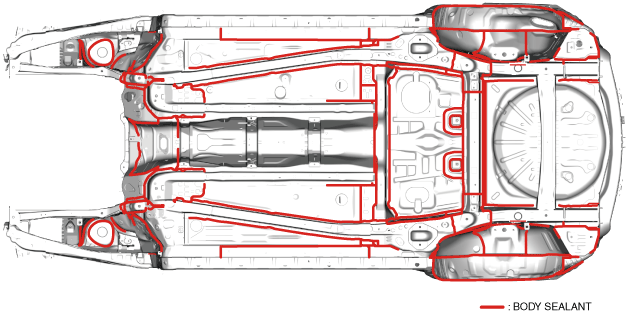

Australian, General (L.H.D.), General (R.H.D.) (Except Hong Kong) specs.

ac5wzb00000348

4WD

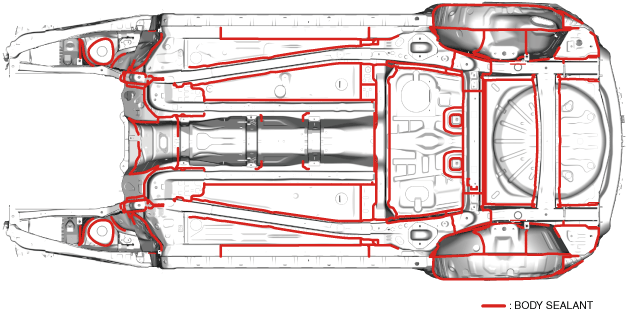

Except SKYACTIV-D 2.2 (European (L.H.D. U.K.) specs.)

ac5wzb00000549

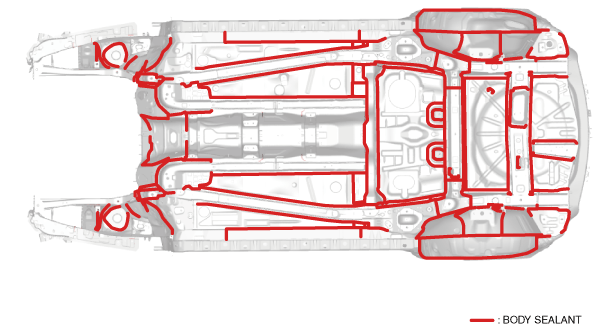

SKYACTIV-D 2.2 (European (L.H.D. U.K.) specs.)

ac5wzb00000543

Australian (Except SKYACTIV-G 2.5T), General (L.H.D.) (Except SKYACTIV-G 2.5T), General (R.H.D.) specs.

ac5wzb00000550

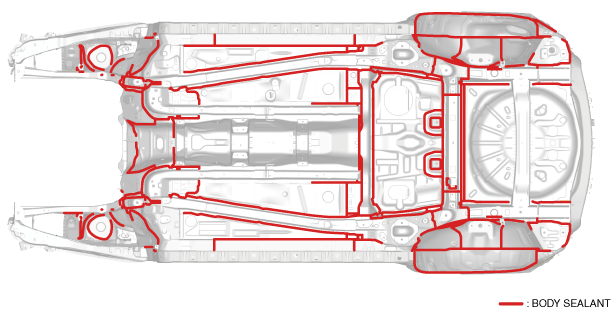

Australian, General (L.H.D.) (SKYACTIV-G 2.5T) specs.

ac5wzb00000570

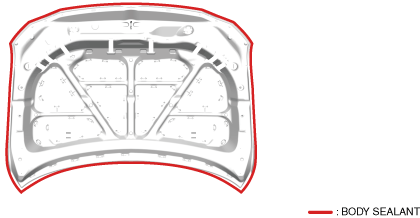

Bonnet

ac5uub00000093

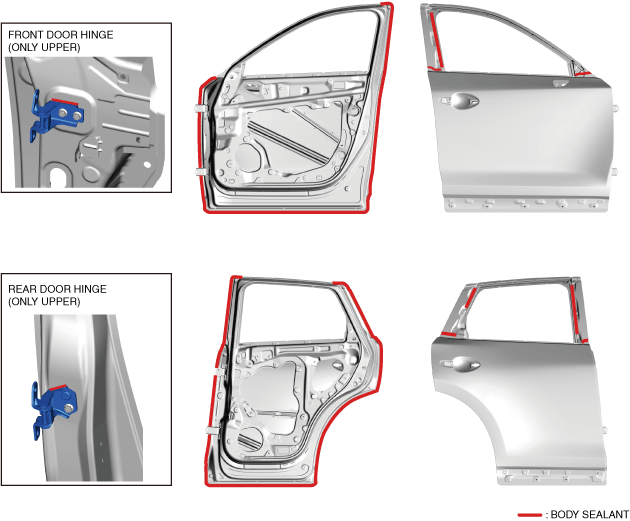

Door

ac5uub00000094

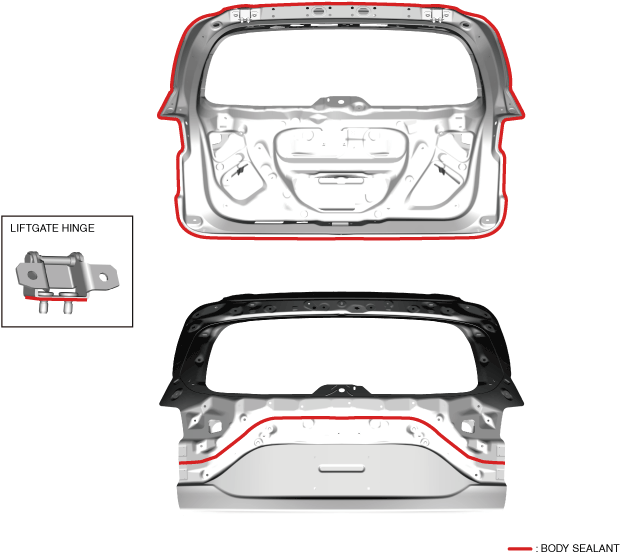

Liftgate

ac5uub00000095
