ROOM STRAIGHT-LINE DIMENSIONS (1) [DIMENSIONS]
id098010743300
ac5uub00000112
|
ac5uub00000113
|
|

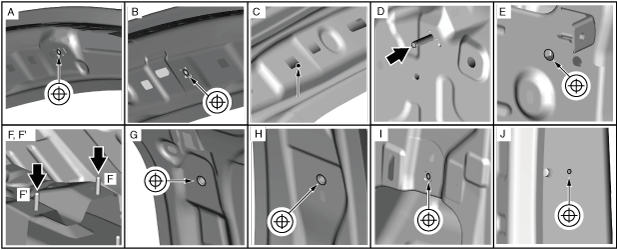

Point symbol |
Designation |
Hole diameter or bolt or nut size (mm {in}) |
|---|---|---|
|
A
|
Curtain air bag module installation nut
|
M6
|
|
B
|
Curtain air bag module installation nut
|
M6
|
|
C
|
Front pillar (inner) datum square hole
|
-
|
|
D
|
Dashboard installation stud pin
|
-
|
|
E
|
Side sill (inner) datum hole
|
Φ10 {0.39}
|
|
F
|
Selector lever (ATX)/Shift lever (MTX) installation bolt
|
M8
|
|
G
|
Front seat belt upper anchor installation nut
|
M10
|
|
H
|
Front seat belt upper anchor installation nut
|
M10
|
|
I
|
Pre-tensioner seat belt installation nut
|
M6
|
|
J
|
Front door checker installation hole
|
Φ4 {0.2}
|
