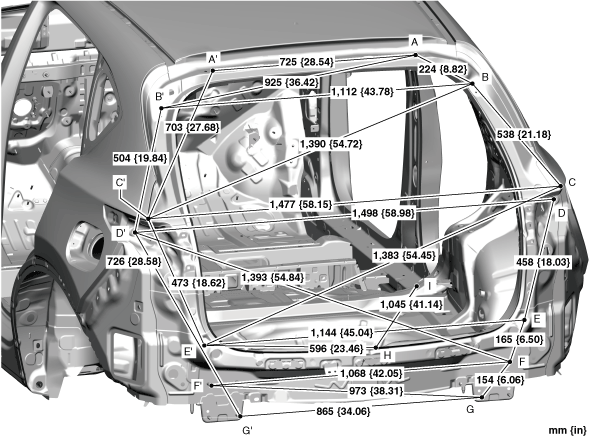

REAR BODY STRAIGHT-LINE DIMENSIONS (1) [DIMENSIONS]
id098010746300
ac5uub00000119
|
ac5uub00000120
|
|

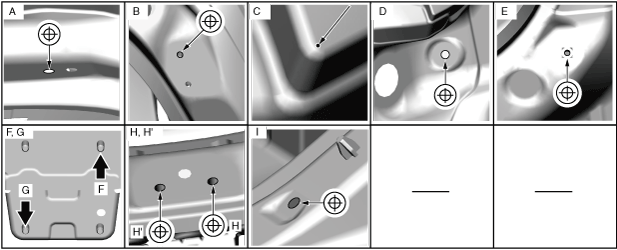

Point symbol |
Designation |
Hole diameter or bolt or nut size (mm {in}) |
|---|---|---|
|
A
|
Liftgate hinge installation hole
|
Φ12 {0.47}
|
|
B
|
Liftgate stay damper installation nut
|
M6
|
|
C
|
Side frame panel (outer) projection location
|
-
|
|
D
|
Corner plate datum hole
|
Φ8 {0.3}
|
|
E
|
Liftgate stopper rubber installation nut
|
M6
|
|
F
|
Rear bumper reinforcement installation bolt
|
M10
|
|
G
|
Rear bumper reinforcement installation bolt
|
M10
|
|
H
|
Liftgate striker installation nut
|
M8
|
|
I
|
Brace bracket datum hole
|
Φ7 {0.3}
|
