CONSTRUCTION STANDARD VALUES [CONSTRUCTION STANDARD VALUES]

id0980c0740300

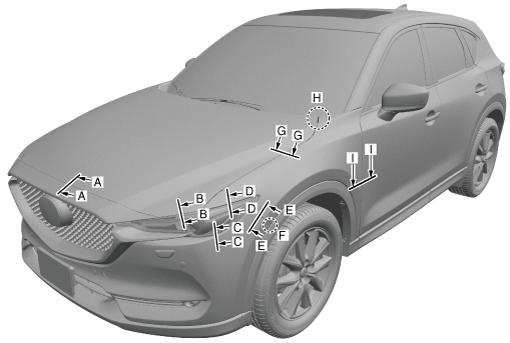

Front view

ac5wzb00000354

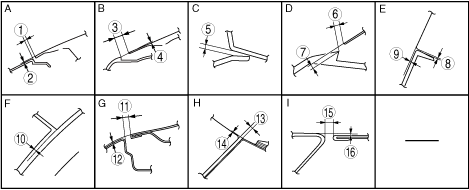

ac5jjb00000212

No.

Measurement part

Standard values (mm {in})

Maximum values (mm {in})

Minimum values (mm {in})

Parallelism (mm {in})
A
1
3.5 {0.14}
5.3 {0.21}
1.7 {0.067}
2.0 {0.079}
2
0
2.0 {0.079}
-2.0 {-0.079}
-
B
3
9.6 {0.38}
11.6 {0.457}
7.6 {0.30}
-
4
1.1 {0.043}
3.0 {0.12}
-0.8 {-0.03}
-
C
5
1.8 {0.071}
3.3 {0.13}
0.3 {0.01}
1.5 {0.059}
D
6
1.8 {0.071}
3.1 {0.12}
0.5 {0.02}
1.3 {0.051}
7
1.3 {0.051}
2.6 {0.10}
0
-
E
8
0.5 {0.02}
1.3 {0.051}
-
-
9
0.5 {0.02}
1.2 {0.047}
-0.2 {-0.008}
-
F
10
0
1.0 {0.039}
-1.0 {-0.039}
-
G
11
3.5 {0.14}
4.5 {0.18}
2.5 {0.098}
1.0 {0.039}
12
0
1.0 {0.039}
-1.0 {-0.039}
-
H
13
4.2 {0.17}
5.2 {0.20}
3.5 {0.14}
1.0 {0.039}
14
0
1.0 {0.039}
-1.0 {-0.039}
-
I
15
3.5 {0.14}
4.5 {0.18}
2.7 {0.11}
1.0 {0.039}
16
0
1.0 {0.039}
-1.0 {-0.039}
-

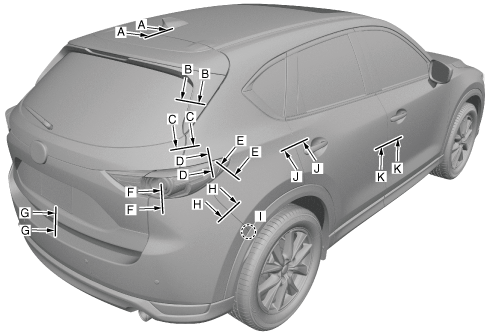

Rear view

ac5wzb00000355

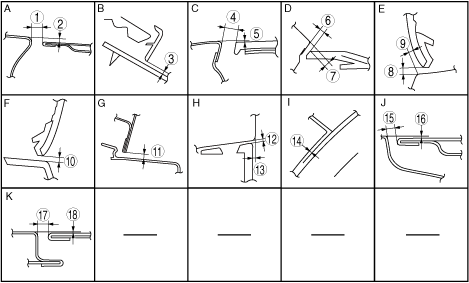

ac5jjb00000214

No.

Measurement part

Standard values (mm {in})

Maximum values (mm {in})

Minimum values (mm {in})

Parallelism (mm {in})
A
1
6.0 {0.24}
7.0 {0.28}
5.0 {0.20}
1.2 {0.047}
2
-1.9 {-0.075}
-0.9 {-0.04}
-2.9 {-0.11}
-
B
3
1.5 {0.059}
4.3 {0.17}
0.5 {0.02}
2.8 {0.11}
C
4
5.6 {0.22}
7.6 {0.30}
3.6 {0.14}
-
5
0
2.0 {0.079}
-2.0 {-0.079}
-
D
6
1.8 {0.071}
3.1 {0.12}
0.5 {0.02}
1.2 {0.047}
7
1.5 {0.059}
3.0 {0.12}
0
-
E
8
1.8 {0.071}
3.5 {0.14}
0.1 {0.004}
1.7 {0.067}
9
1.5 {0.059}
3.0 {0.12}
0
-
F
10
1.8 {0.071}
3.3 {0.13}
0.3 {0.01}
-
G
11
With power liftgate (PLG)
5.5 {0.22}
7.5 {0.30}
3.5 {0.14}
2.0 {0.079}
Without power liftgate (PLG)
6.0 {0.24}
8.0 {0.31}
4.0 {0.16}
2.0 {0.079}
H
12
0.5 {0.02}
1.3 {0.051}
0.3 {0.01}
0.8 {0.03}
13
0.5 {0.02}
1.2 {0.047}
-0.2 {-0.008}
-
I
14
0
1.0 {0.039}
-1.0 {-0.039}
-
J
15
3.5 {0.14}
4.5 {0.18}
2.5 {0.098}
1.0 {0.039}
16
0
1.0 {0.039}
-1.0 {-0.039}
-
K
17
3.5 {0.14}
4.5 {0.18}
2.8 {0.11}
1.0 {0.039}
18
0
1.0 {0.039}
-1.0 {-0.039}
-
