FOREWORD [WITHOUT CYLINDER DEACTIVATION (SKYACTIV-G 2.0, SKYACTIV-G 2.5)]
id1103m1000200
Special Service Tool (SST)
49US 15 1A0
PROBE KIT
|
![]() |
Troubleshooting Procedure
ac5wzw00013600
|

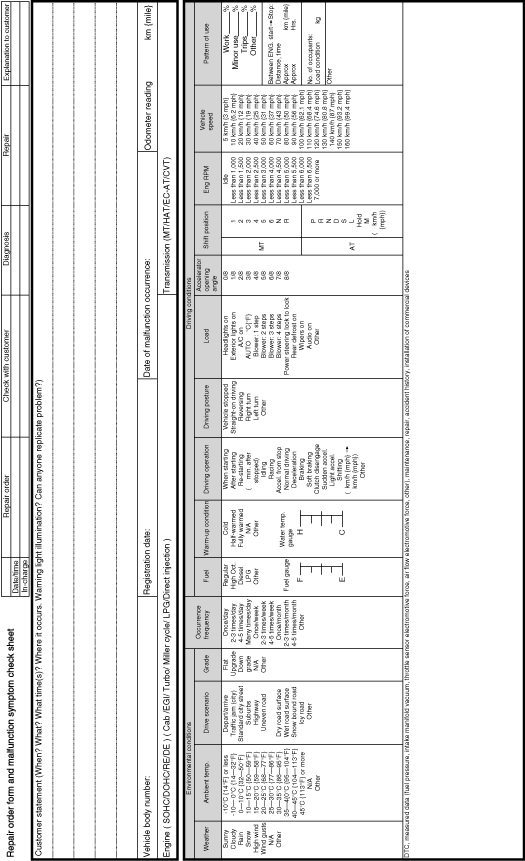

Repair order form
ac5uuw00004385
|
am6zzw00012143
|

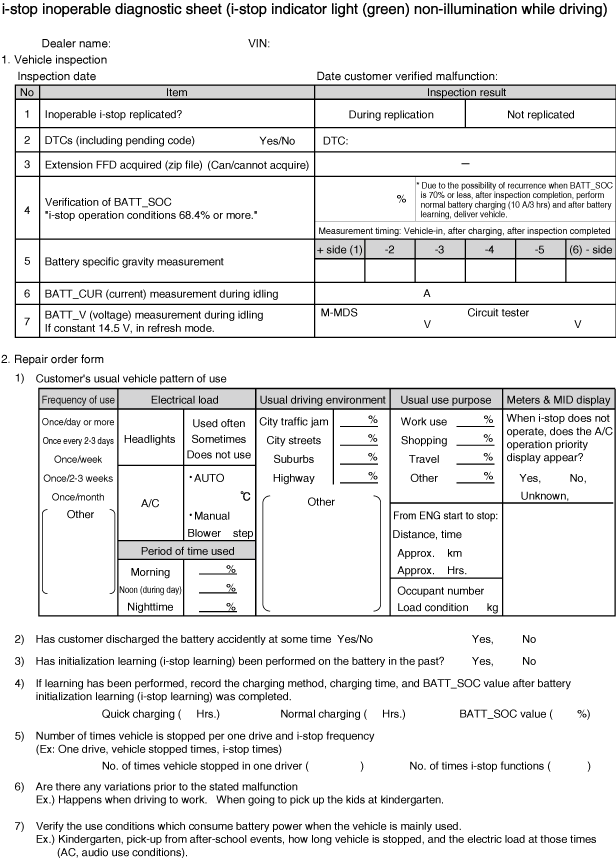

Repair order form (i-stop)
am6zzw00012144
|
Action for Non-repeatable Malfunction
ac5uuw00007565
|
amxzzw00004455
|
i-stop Control
i-stop (engine-stop control) permit condition
Determination module |
Determination item |
Determination condition |
Applicable PID |
|
---|---|---|---|---|
ATX |
MTX |
|||
PCM
|
Vehicle speed
|
0 km/h {0 mph}
|
3 km/h {2 mph} or less
|
WSPD_SEN_LF
|
WSPD_SEN_RF
|
||||
WSPD_SEN_LR
|
||||
WSPD_SEN_RR
|
||||
Brake pedal
|
Brake pedal is depressed while in D or M position
|
Not applicable
|
TR
|
|
BPA
|
||||
Brake fluid pressure
|
Brake fluid pressure is 1.35 MPa {13.8 kgf/cm2, 196 psi} or more while in D or M position (perform correction according to vehicle inclination angle)
|
Not applicable
|
TR
|
|
BRK_F_P_C
|
||||
Accelerator pedal
|
Released
|
←
|
APP
|
|
Clutch pedal
|
Not applicable
|
Released
|
CPP
|
|
MTX gear position
|
Not applicable
|
Neutral
|
CPP/PNP
|
|
Vehicle conditions
|
Vehicle is stopped in D position*1
|
Not applicable
|
TR
|
|
Steering speed
|
15 deg/s or less
|
←
|
STR_ROT_SPD
|
|
Steering angle
|
Within 65° of center to left and right
(After EPS control module learns center value)
|
Not applicable
|
Not applicable
|
|
Steering torque
|
1.1 N·m {11 kgf·cm, 9.7 in·lbf} or less
|
←
|
STR_TRQ_S_M
|
|
i-stop OFF switch
|
OFF
|
←
|
I-Stop_OFF
|
|
Vehicle speed history
(After engine started and driven once)
|
3 km/h {2 mph} or more
|
4 km/h {2.5 mph} or more
|
I-Stop_VSP
|
|
Capacitor voltage
|
14 V or more
|
←
|
DCDC_IN_V
|
|
Battery charge condition
|
65.72 % or more
|
←
|
BATT_SOC
|
|
Battery fluid temperature
|
0—70 °C {32—158 °F}
|
←
|
BATT_TEMP
|
|
Battery voltage
|
11.2 V or more
|
←
|
BATT_V
|
|
Power brake unit vacuum
|
-45 kPa {-0.46 kgf/cm2, -6.5 psi} or less
(value calculated by subtracting BARO from BBP)
|
←
|
BBP
|
|
BARO
|
||||
Door (driver's side)
|
Closed
|
←
|
DOOR_D
|
|
Hood
|
Closed *2
|
←
|
HOOD
|
|
Vehicle inclination angle
|
Within ±7° when level (LON_ACCL_C: within ±0.121 G)
|
Not applicable
|
LON_ACCL_C
|
|
Seat belt (driver's side)
|
Fastened*3
|
←
|
SEAT_B_D
|
|
Battery condition setting
|
Completed
|
←
|
Not applicable
|
|
Steering angle sensor initial setting
|
Completed
|
Not applicable
|
Not applicable
|
|
After refueling*4 (E85 or higher compatible vehicles)
|
• All the following conditions are met:
|
←
|
Not applicable
|
|
Engine coolant temperature
|
55—110 °C {55—230 °F}
|
←
|
ECT
|
|
Intake air temperature
|
100 °C {212 °F} or less
|
←
|
IAT
|
|
PCM
|
Altitude
|
Applied VIN type A, B: 1,800 m or less (BARO: 81.5 kPa {0.831 kgf/cm2, 11.8 psi} or more)
Applied VIN type C: 2,000 m or less (BARO: 79.0 kPa {0.806 kgf/cm2, 11.5 psi} or more)
|
←
|
BARO
|
System condition
|
i-stop related part DTCs are not recorded
|
←
|
Not applicable
|
|
Start stop unit
|
+B (ROOM fuse) input
|
Yes
|
←
|
VPWR_B1
|
IG1 input
|
Yes
|
←
|
VPWR_IG1
|
|
ACC input
|
Yes
|
←
|
VPWR_ACC
|
|
IG1 output
|
Yes
|
←
|
RELAY_IG1
|
|
IG2 output
|
Yes
|
←
|
RELAY_IG2
|
|
ACC output
|
Yes
|
←
|
RELAY_ACC
|
|
Push button
|
Not pressed
|
←
|
SSB_1
|
|
SSB_2
|
||||
Door (all)
|
Closed
|
←
|
DOOR_ALL
|
|
Liftgate
|
Closed
|
←
|
TRUNK
|
|
Seat belt (driver's side)
|
Fastened*3
|
←
|
SEAT_B_D
|
|
Engine start
|
Engine was started by operating push button with key inside cabin (engine started first time)
|
←
|
Not applicable
|
|
Engine rotation speed
|
300 rpm or more is maintained after engine started
|
←
|
Not applicable
|
|
System condition
|
i-stop related part DTCs are not recorded
|
←
|
Not applicable
|
|
TCM
|
TCM detection condition
|
All met (I-Stop_EST: On)
|
Not applicable
|
I-Stop_EST
|
Panic stop
|
Brake pedal was not depressed suddenly within 4 s
|
Not applicable
|
Not applicable
|
|
TFT
|
20―117 °C {68—242 °F}
|
Not applicable
|
TFT
|
|
Gear position
|
Not in 2nd gear fixed mode
|
Not applicable
|
Not applicable
|
|
System condition
|
i-stop related part DTCs are not recorded
|
Not applicable
|
Not applicable
|
|
Climate control unit
|
Climate control unit determination condition
|
With full-auto A/C
• All met
(STOP_ST: Available)
With manual A/C
• All met
|
←
|
With full-auto A/C
• STOP_ST
With manual A/C
• Not applicable
|
Cabin temperature (with full-auto A/C)
|
Difference between target cabin temperature and actual cabin temperature is a certain value or less
(Cabin temperature control by A/C is normally performed)
|
←
|
Not applicable
|
|
A/C temperature (with full-auto A/C)
|
Setting other than MAX/MIN
|
←
|
Not applicable
|
|
Ambient temperature
|
-10―50 °C {14—122 °F}
|
←
|
Not applicable
|
|
Cold condition (with manual A/C)
|
Ambient temperature is 29 °C {84 °F} or less and evaporator temperature is 9 °C {48 °F} or less
|
←
|
Not applicable
|
|
Cold condition (with full-auto A/C)
|
Ambient temperature is 4 °C {39 °F} or more or evaporator temperature is 12 °C {54 °F} or less
|
←
|
Not applicable
|
|
Warm-up operation condition (with manual A/C)
|
Ambient temperature is 10 °C {50 °F} or more and engine coolant temperature is 60 °C {140 °F} or more
|
←
|
ECT
|
|
Cold condition (with manual A/C)
|
Ambient temperature is 29 °C {84 °F} or less and evaporator temperature is 9 °C {48 °F} or less
|
←
|
Not applicable
|
|
Front defroster switch
|
OFF
|
←
|
Not applicable
|
|
System condition
|
i-stop related part DTCs are not recorded
|
←
|
Not applicable
|
|
DSC HU/CM
|
Operation request from PCM
|
Hill Launch Assist (HLA) control request signal from PCM is received
|
Not applicable
|
Not applicable
|
Vehicle inclination angle
|
Inclination is within ±6° with shift positioned in D/M/R or N/P (LON_ACCL_C: within ±0.104 G)
|
Not applicable
|
TR
|
|
LON_ACCL_C
|
||||
Wheel speed (4 wheels)
|
0 km/h {0 mph}
|
Not applicable
|
WSPD_SEN_LF
|
|
WSPD_SEN_RF
|
||||
WSPD_SEN_LR
|
||||
WSPD_SEN_RR
|
||||
Brake pedal
|
Brake pedal is depressed
|
Not applicable
|
BRAKE_SW
|
|
Brake fluid pressure
|
Approx. 0.45 MPa {4.6 kgf/cm2, 65 psi} or more
|
Not applicable
|
BRK_F_P_C
|
|
Accelerator pedal
|
Released
|
Not applicable
|
APP
|
|
System condition
|
i-stop related part DTCs are not recorded
|
Not applicable
|
Not applicable
|
i-stop (engine restart control) condition
Detection module |
Detection item |
Determination conditions |
PID |
|
---|---|---|---|---|
ATX |
MTX |
|||
PCM
|
Vehicle speed
|
1 km/h {0.6 mph} or more
|
4 km/h {2.5 mph} or more
|
WSPD_SEN_LF
|
WSPD_SEN_RF
|
||||
WSPD_SEN_LR
|
||||
WSPD_SEN_RR
|
||||
Brake pedal
|
• Brake pedal is released → depressed while in P or N position
• Brake pedal is released while in D or M position and AUTOHOLD is not operating
|
Not applicable
|
TR
|
|
BPA
|
||||
Brake fluid pressure
|
Brake fluid pressure is 0.35 MPa {3.6 kgf/cm2, 51 psi} or less while in D or M position and AUTOHOLD is not operating
|
Not applicable
|
TR
|
|
BRK_F_P_C
|
||||
Accelerator pedal
|
Accelerator pedal is depressed while in D or M position
|
Not applicable
|
TR
|
|
APP
|
||||
Clutch pedal
|
Not applicable
|
Depressed
|
CPP
|
|
Steering torque
|
2.8 N·m {29 kgf·cm, 25 in·lbf} or more while in D or M position
|
Not applicable
|
STR_TRQ_S_M
|
|
Steering angle
|
70° or more from center while in D or M position
(After EPS control module learns center value)
|
Not applicable
|
Not applicable
|
|
Shift operation
|
Operated from P or N position to D, M, or R position
|
Not applicable
|
TR
|
|
i-stop OFF switch
|
ON
|
←
|
I-Stop_OFF
|
|
Battery charge condition
|
65% or less
|
←
|
BATT_SOC
|
|
Power brake unit vacuum
|
-43 KPa {-0.44 kgf/cm2, -6.2 psi} or more
(value calculated by subtracting BARO from BBP)
|
←
|
BBP
|
|
BARO
|
||||
Driver not seated
|
• All the following conditions are met:
|
• All the following conditions are met:
|
SEAT_B_D
|
|
DOOR_D
|
||||
TR
|
||||
CPP/PNP
|
||||
Engine stop period by i-stop
|
120 s or more
|
←
|
Not applicable
|
|
Engine coolant temperature
|
53 °C {127 °F} or less
|
←
|
ECT
|
|
System condition
|
An i-stop related part DTC is recorded
|
←
|
Not applicable
|
|
Start stop unit
|
+B (ROOM fuse) input
|
No
|
←
|
VPWR_B1
|
Remote transmitter authorization
|
When engine restart by remote transmitter authorization is requested
• Any door is open without remote transmitter left in vehicle
• Remote transmitter is outside of vehicle after any door is opened
|
←
|
Not applicable
|
|
System condition
|
An i-stop related part DTC is recorded
|
←
|
Not applicable
|
|
TCM
|
Gear position
|
In 2nd gear fixed mode
|
Not applicable
|
Not applicable
|
TFT
|
20 °C {68 °F} or less, or 117°C {243 °F} or more
|
Not applicable
|
TFT
|
|
Vehicle speed
|
3 km/h {2 mph} or more
|
Not applicable
|
WSPD_SEN_LF
|
|
WSPD_SEN_RF
|
||||
WSPD_SEN_LR
|
||||
WSPD_SEN_RR
|
||||
System condition
|
An i-stop related part DTC is recorded
|
←
|
Not applicable
|
|
Climate control unit
|
A/C request (with full-auto A/C)
|
Yes
|
←
|
STOP_ST
|
A/C set temperature (with full-auto A/C)
|
Set to MAX or MIN
|
←
|
Not applicable
|
|
Front defroster switch
|
ON
|
←
|
Not applicable
|
|
System condition
|
An i-stop related part DTC is recorded
|
←
|
Not applicable
|
|
DSC HU/CM
|
System condition
|
An i-stop related part DTC is recorded
|
Not applicable
|
Not applicable
|
