QUICK DIAGNOSTIC CHART [WITHOUT CYLINDER DEACTIVATION (SKYACTIV-G 2.0, SKYACTIV-G 2.5)]

id1103m1000400

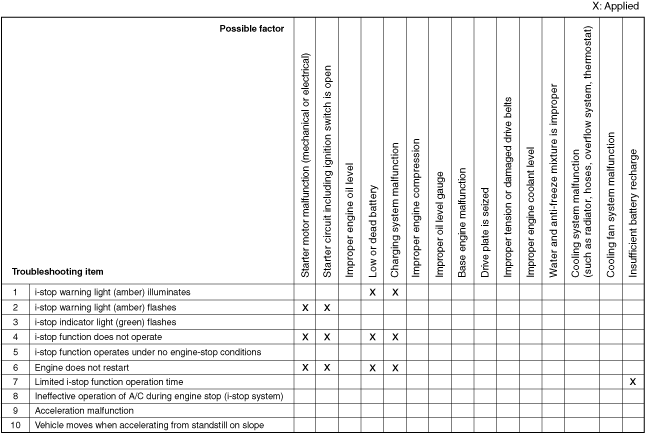

ac5wzw00013793

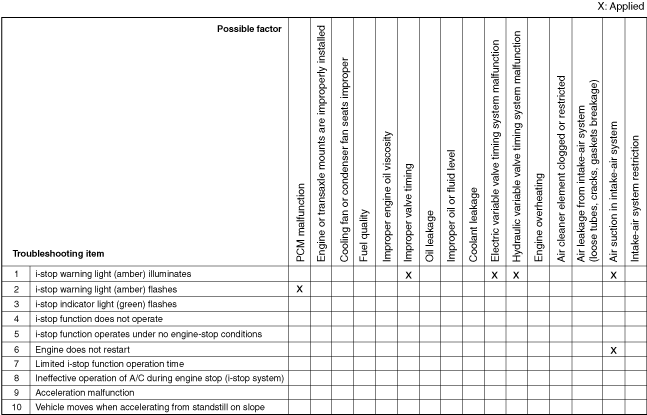

ac5wzw00013794

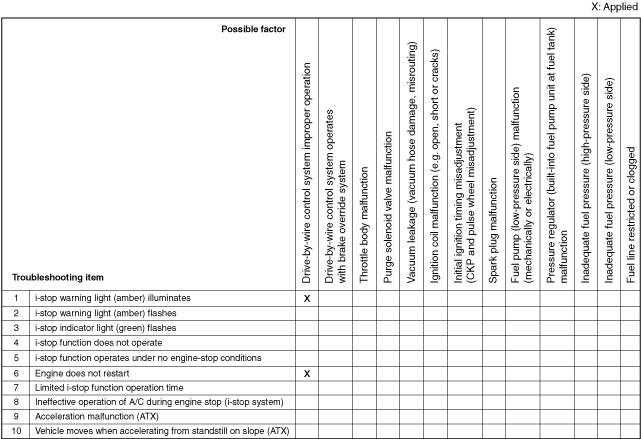

ac5wzw00010297

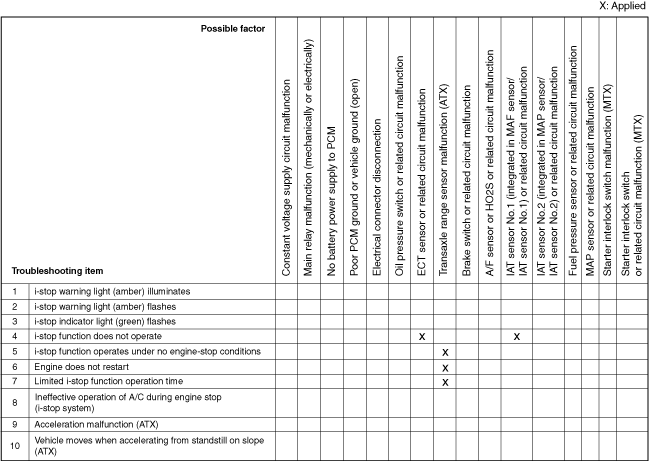

ac5wzw00010298

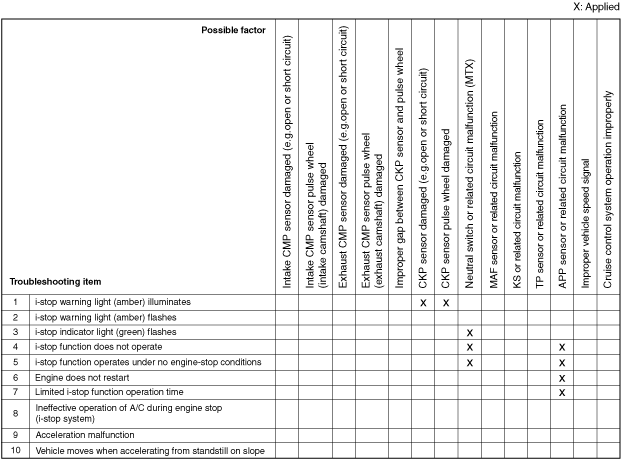

ac5wzw00013795

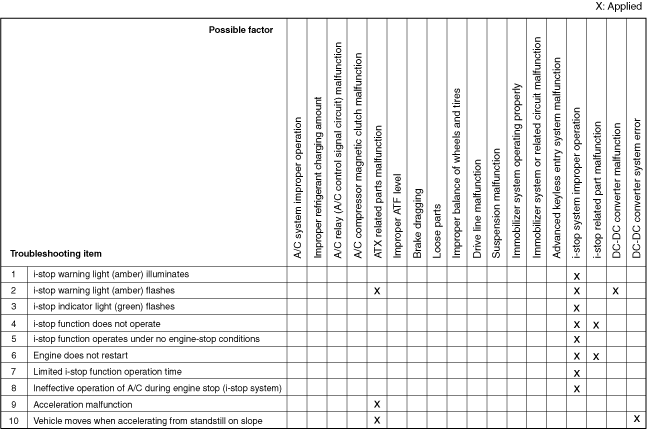

ac5wzw00013796

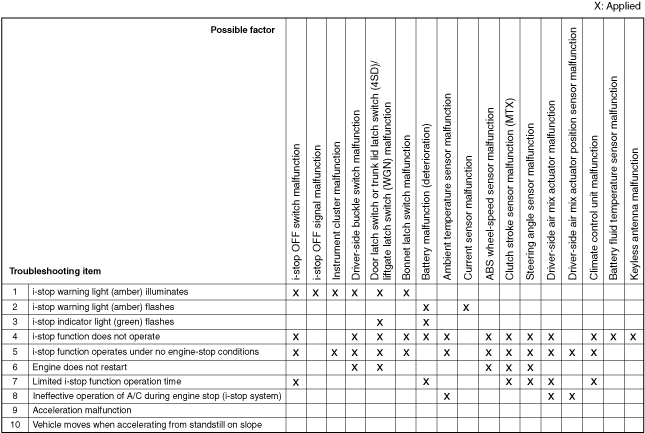

ac5wzw00013797

ac5wzw00013798
