DC-DC CONVERTER (i-ELOOP) REMOVAL/INSTALLATION [i-ELOOP]

id131704009000

Procedure Before i-ELOOP-Related Part Servicing

Warning

•  If the terminal of one of the i-ELOOP-related parts contacts the vehicle body with the service plug of the capacitor connected, it could cause a fire and damage to electrical parts. In addition, if the terminal contacts your body, it could cause electrocution. Disconnect the service plug of the capacitor before disconnecting the i-ELOOP-related part terminal. (See SERVICE PLUG DISCONNECTION/CONNECTION [i-ELOOP].)

―  For the i-ELOOP-related part terminals, refer to the “PROCEDURE BEFORE i-ELOOP-RELATED PART SERVICING”. (See PROCEDURE BEFORE i-ELOOP-RELATED PART SERVICING [i-ELOOP].)

DC-DC Converter (i-ELOOP) Removal/Installation

1.  Turn the steering wheel completely to the right.

2.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

3.  Disconnect the service plug. (See SERVICE PLUG DISCONNECTION/CONNECTION [i-ELOOP].)

4.  Remove the front seat component (LH). (See FRONT SEAT REMOVAL/INSTALLATION.)

5.  Remove in the order indicated in the table.

6.  Install in the reverse order of removal.

ac5wzw00010890

1	Cover (See Cover installation note.)
2	DC-DC converter connector
3	Battery cable (See Battery cable removal note.)
4	DC-DC converter (i-ELOOP) component
5	Bracket (See Bracket installation note.)
6	DC-DC converter

Battery cable removal note

1.  Remove the battery cable terminal nuts.

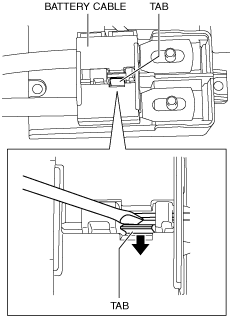

2.  Using a flathead screwdriver, shift the battery cable tab in the direction of the arrow, raise the battery cable and remove it.

am6zzw00012213

Bracket installation note

1.  Temporarily tighten the bracket installation bolts.

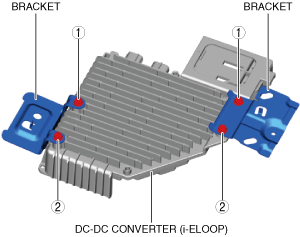

2.  Tighten the bolts in the order shown in the figure.

ac5wzw00010891

Cover installation note

1.  Install the cover by attaching the cover hooks to the front end of the bracket as shown in the figure.

am6zzw00012214
