360°VIEW MONITOR SWITCH


id151200004500


Purpose

•  The 360° view monitor switch switches the view monitor between display/non-display of the top view/front view, front wide view, and side views.

Function

•  The 360° view monitor switch sends a switch operation signal to the 360° view monitor control module.

Structural

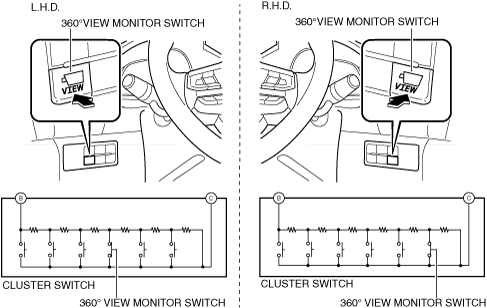

•  The 360° view monitor switch is built into the cluster switch.
ac5wzn00004791

Operation

•  For the 360° view monitor switch operation, refer to the [360° VIEW MONITOR SYSTEM].(See 360°VIEW MONITOR SYSTEM.)

Fail-safe

•  Not applicable
