LANE-KEEP ASSIST SYSTEM OFF INDICATOR LIGHT

id151300004400

Purpose

• The lane-keep assist system OFF indication notifies the driver that the lane-keep assist system is not operating.

Functions

• The instrument cluster illuminates lane-keep assist system OFF indicator light based on the system condition display request signal sent from the forward sensing camera (FSC) via CAN communication.

Construction

• The lane-keep assist system OFF indicator light is built into the instrument cluster.

ac5uun00004140

Operation

Lane-keep assist system OFF indicator light

1. The instrument cluster receives (1) a system condition display request signal from the forward sensing camera (FSC) via CAN communication.

2. The instrument cluster turns the transistor on (2) based on the system condition display request signal.

3. When the transistor turns on, the lane-keep assist system OFF indicator light turns on (3).

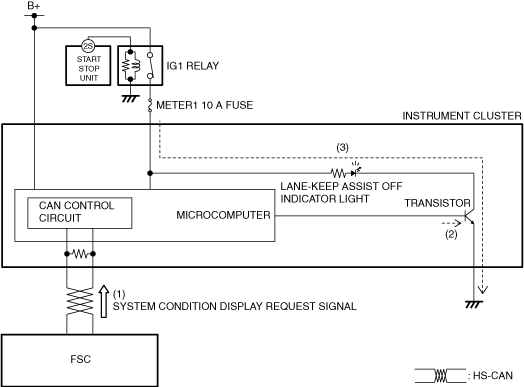

am3zzn00006311

Fail-safe

• Not applicable
