TRANSAXLE CASE AND CLUTCH HOUSING DISASSEMBLY
id051500168200

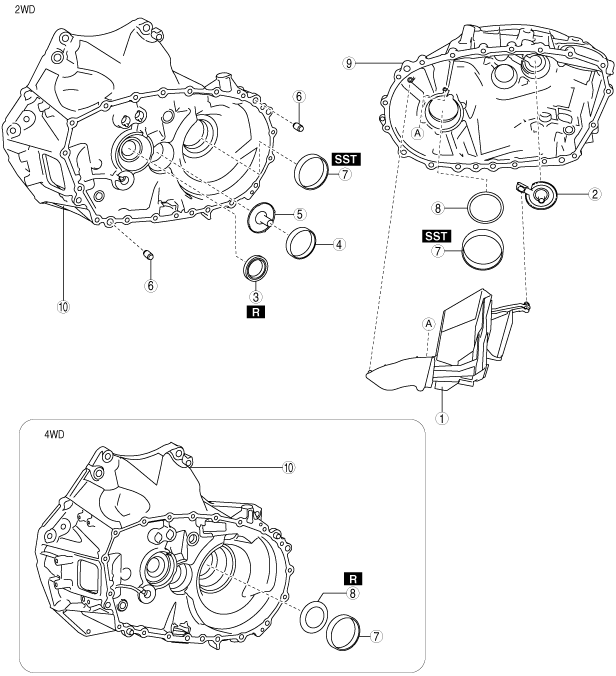

1. Disassemble the transaxle case component and clutch housing component in the order shown in the figure.
bc62zm00000025
|
|
1
|
Oil path
(See Oil Path Removal Note.)
|
|
2
|
Funnel
|
|
3
|
Oil seal
(See Oil Seal Removal Note.)
|
|
4
|
Bearing outer race
|
|
5
|
Funnel
|
|
6
|
Dowel pin
|
|
7
|
Bearing outer race (differential)
|
|
8
|
Shim
|
|
9
|
Transaxle case
|
|
10
|
Clutch housing
|
Oil Path Removal Note
1. Remove the oil path.
2. As shown in the figure, verify that the oil path connection area is not broken.
bc61um00000167
|
Oil Seal Removal Note
1. Remove the oil seal using a flathead screwdriver.
bc61um00000168
|
Bearing Outer Race (Differential) Removal Note
1. Remove the bearing outer race from the transaxle case using the SST.
bc61um00000008
|
2. Remove the bearing outer race from the clutch housing using the SST. (2WD)
bc61um00000011
|

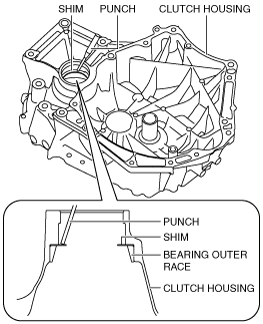

3. Remove the bearing outer race and shim from the clutch housing using a punch. (4WD)
bc62zm00000026
|
